10 Speed Reference Display (green)
Reflects the selection on the N1/SPD REF SET display:
• label can say V1, VR, WT KLBS, WT KG, MAN SPD, and INVALID
ENTRY.
• numerics show the value for the given selection.
• MAN SPD indicates that the SPD REF setting is in SET and not in
AUTO.
11 100 Knot Airspeed Bug (white)
Indicates 100 knots:
• displayed automatically during preflight
• removed at first flap retraction or when VREF is entered.
PFD – Attitude Indications
Attitude Indications – General

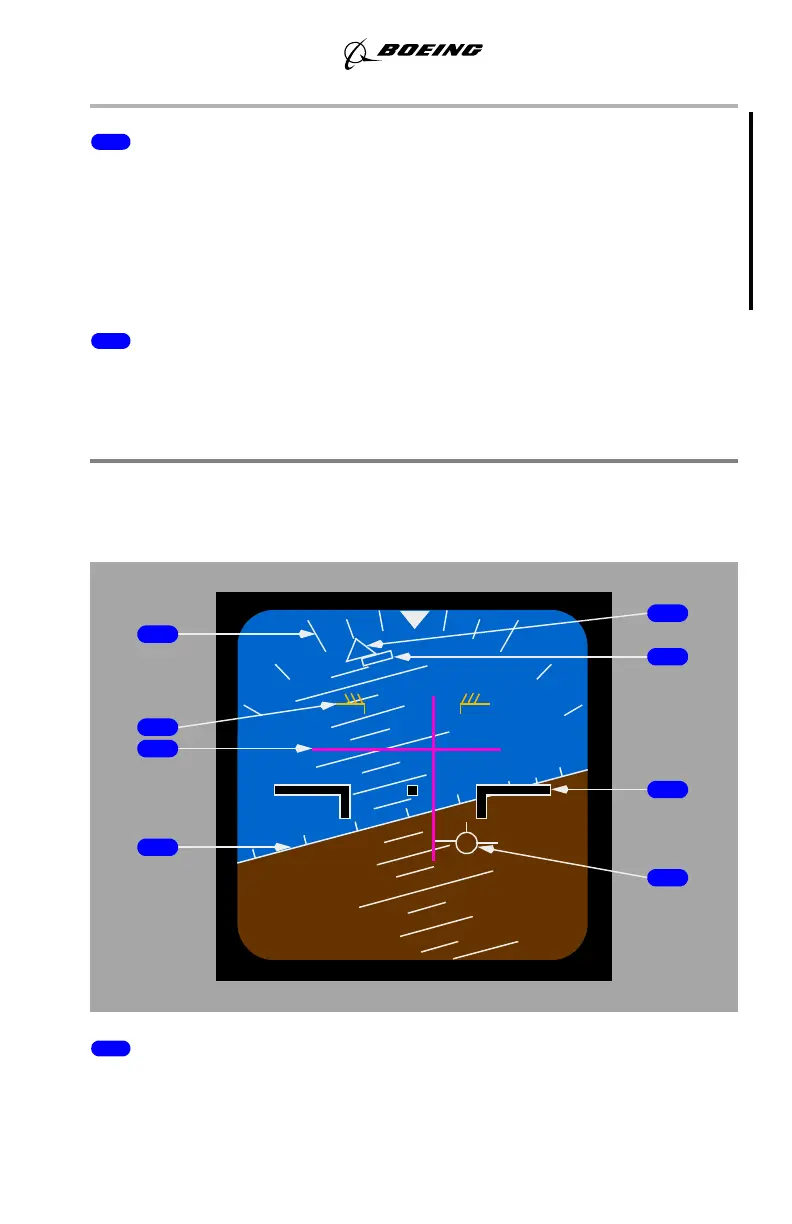

The attitude indication displays ADIRS attitude information.
1 Bank Scale (white)
Provides fixed reference for the bank pointer; scale marks are at 0, 10, 20, 30, 45,
and 60 degrees.
