737 Flight Crew Operations Manual
Flight Instruments, Displays Chapter 10
PFD/ND – Controls and Indicators Section 16
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 10.16.1
16 PFD/ND – Controls and IndicatorsPFD/ND – Controls and IndicatorsFi le Highlight

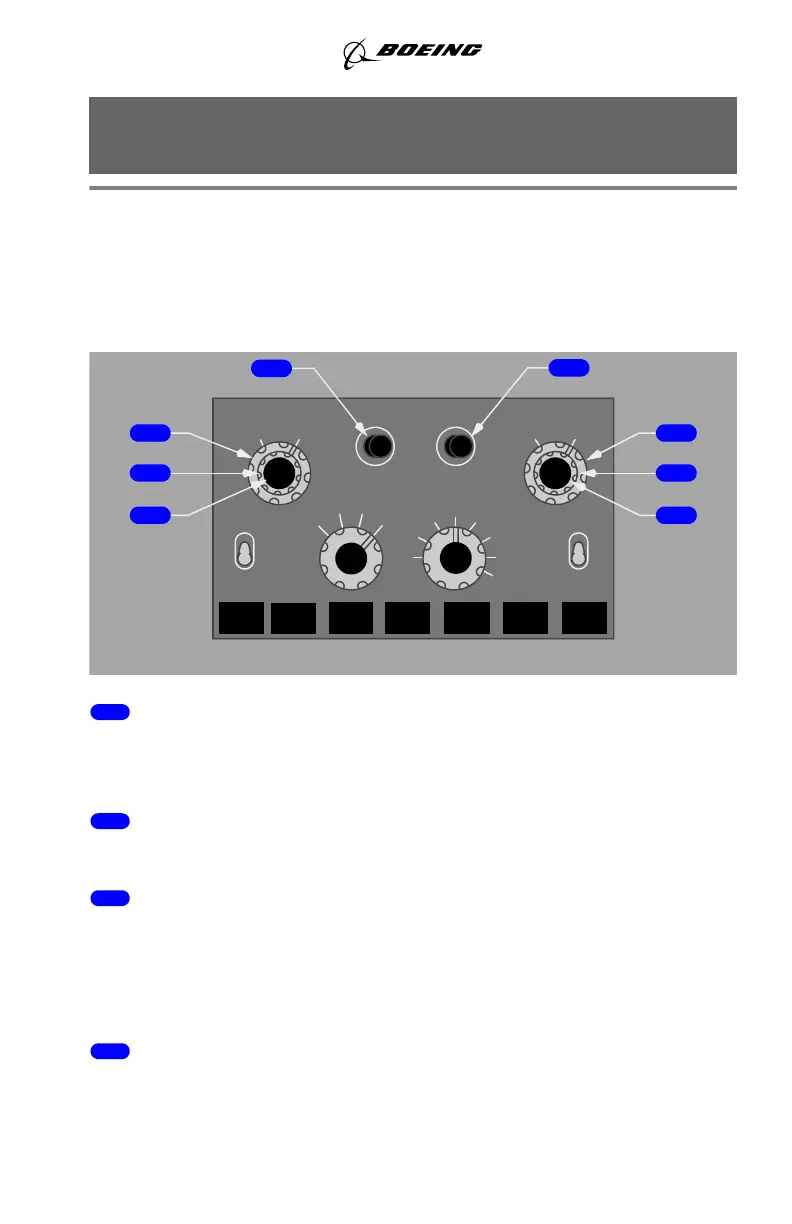

EFIS Control Panel (PFD/ND Display)
The left EFIS control panel controls the Captain outboard and inboard display
units. The right EFIS control panel controls the First Officer outboard and inboard
display units.
EFIS Control Panel Controls – Flight Instrument Displays
1 Minimums (MINS) Reference Selector (outer) (two position)
RADIO – selects radio altitude as the minimums reference.
BARO – selects barometric altitude as the minimums reference.
2 Minimums (MINS) Selector (middle) (slew)
ROTATE – adjusts the radio or baro minimums altitude.
3 Radio Minimums (MINS) Reset (RST) Switch (inner) (momentary
action)
PUSH –
• resets the alert minimums annunciation
• blanks minimums display if alert is not active.
4 Meters (MTRS) Switch (momentary action)
PUSH – displays altitude indications in meters.
VOR
ADF
1
1
VOR
ADF
2
2
5
10
20
40
80
160
320
640
MINS
BARO
FPV MTRS
BARO
IN HPA
OFF
APP
VOR MAP
PLN
WXR STA WPT ARPT DATA POS
OFF
RST STD
TERR
CTR
TFC
RADIO
1
GLARESHIELD
2
3
4
5
6
7
8
September 30, 2011
