5 Bearing Pointer No. 2 Warning Flag
VOR mode:
• RMI power failure
• VHF NAV signal unreliable.
ADF mode:
• RMI power failure
• ADF failure or signal unreliable.
6 VOR/ADF Bearing Pointer No. 2 Switch
ROTATE – selects VOR or ADF for the bearing pointer.

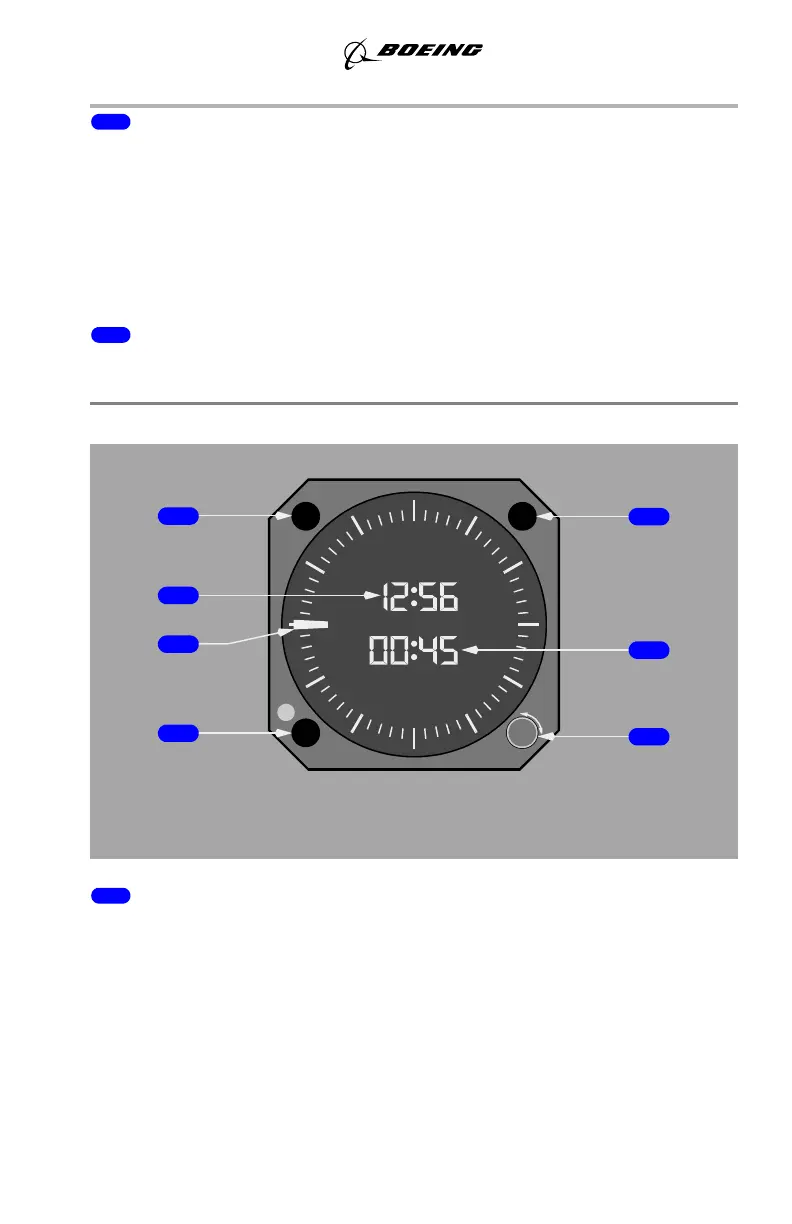

Clock
1 Chronograph (CHR) Control
PUSH –
• controls the start, stop and reset functions of the CHR display and
second hand with successive pushing
• overrides any existing ET display.
ETHOLD TO RESET SETPRESS TO
TIME/DATECHR
CHR
TIME
UTC
1050
60
30
40 20
LEFT AND RIGHT FORWARD PANELS
2
3
4
7
6
5
1
