737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
10.16.12 D6-27370-866-EGP

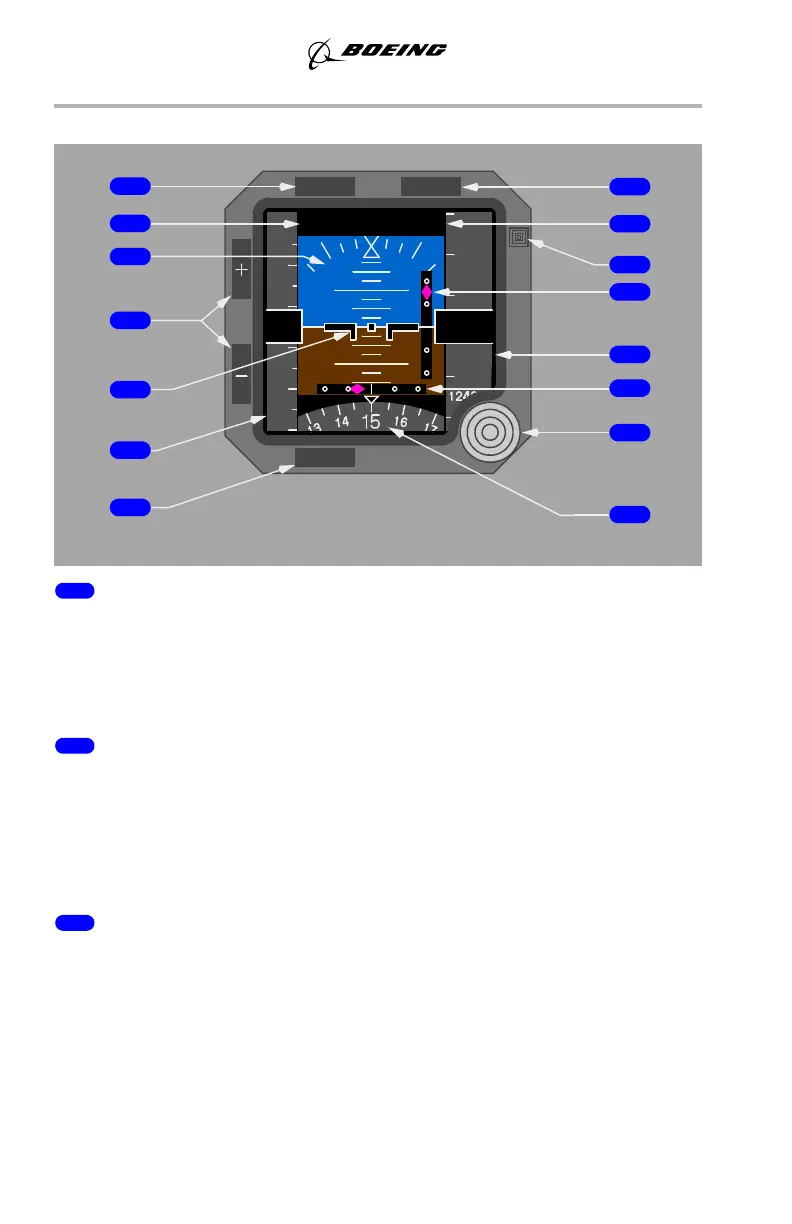

Integrated Standby Flight Display
1 Approach (APP) Switch
Push –
• when blank, selects APP
• when APP displayed, selects BCRS
• when BCRS displayed, blanks.
2 Approach Mode Annunciation
Indicates approach mode selected.
• Blank – no approach deviation data displayed
• APP – ILS localizer and glideslope deviation data displayed
• BCRS (Back course) – reverses sensing for localizer pointer during
back course approaches.
3 Attitude Display
Displays airplane attitude.
• Indicates bank in reference to the bank scale
• Indicates the horizon relative to the airplane symbol
• Beyond 30 degrees pitch, large red arrowheads (V-shaped) indicate the
attitude has become excessive, and the direction to the horizon line.
HP/IN
APP
RST
ATT
BARO
10
10
APP
29.92 IN
13200
13000
12600
40
20
7
12
160
180
220
240
20
1
0
CENTER INSTRUMENT PANEL
1
2
3
4
5
6
8
9
10
11
12
13
14
15
7
