Boeing 737-800 - Speed Brakes

737 Flight Crew Operations Manual
Flight Controls -
Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
9.10.10 D6-27370-866-EGP
Speed Brakes

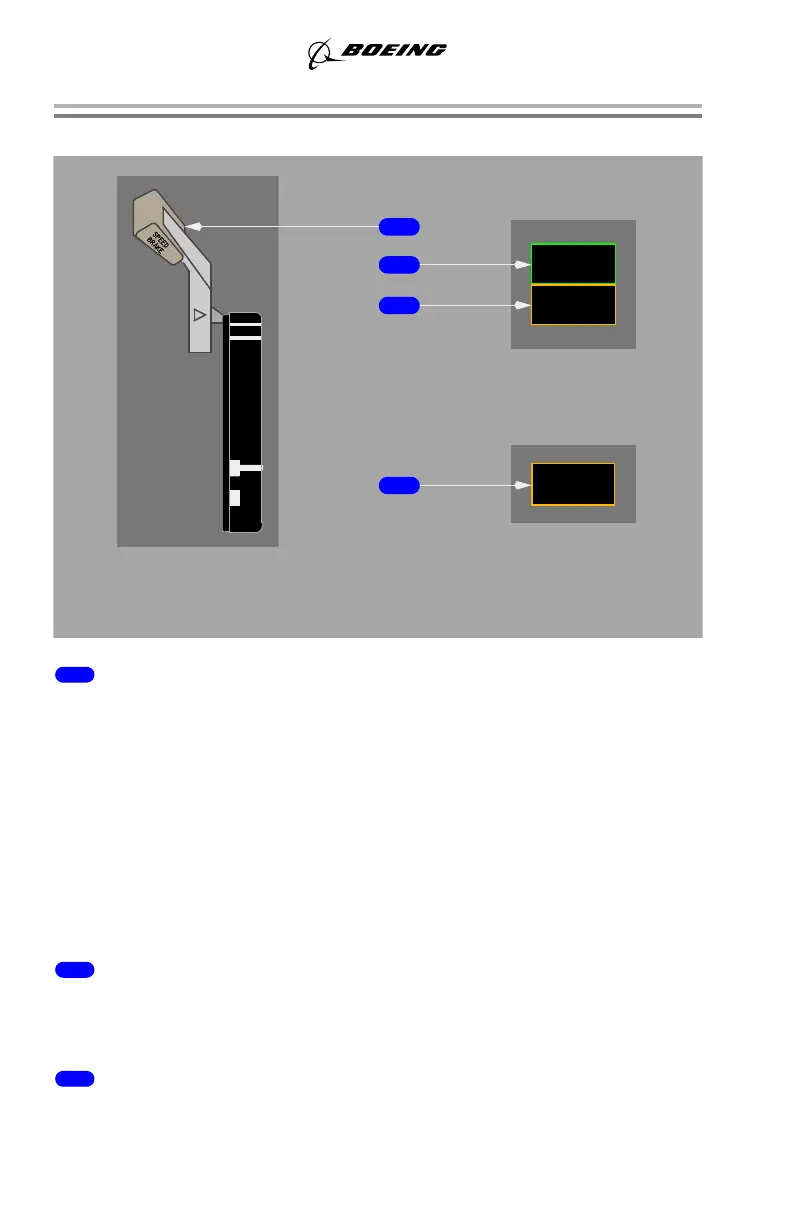

1 SPEED BRAKE Lever
DOWN (detent) – all flight and ground spoiler panels in faired position.
ARMED –
• automatic speed brake system armed
• upon touchdown, the SPEED BRAKE lever moves to the UP position,
and all flight and ground spoilers extend.
FLIGHT DETENT – all flight spoilers are extended to their maximum position for
inflight use.
UP – all flight and ground spoilers are extended to their maximum position for
ground use.
2 SPEED BRAKE ARMED Light
Light deactivated when SPEED BRAKE lever is in the DOWN position.
Illuminated (green) – indicates valid automatic speed brake system inputs.
3 SPEED BRAKE DO NOT ARM Light
Light deactivated when SPEED BRAKE lever is in the DOWN position.
ARMED
DOWN
UP
DETENT
FLIGHT
DO NOT ARM
ARMED
SPEED BRAKE
SPEED BRAKE
EXTENDED
SPEEDBRAKES
LEFT FORWARD
PANEL
RIGHT FORWARD
PANEL
CONTROL STAND
2
3
1
4
September 26, 2013
