737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – Displays
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
10.11.56 D6-27370-866-EGP

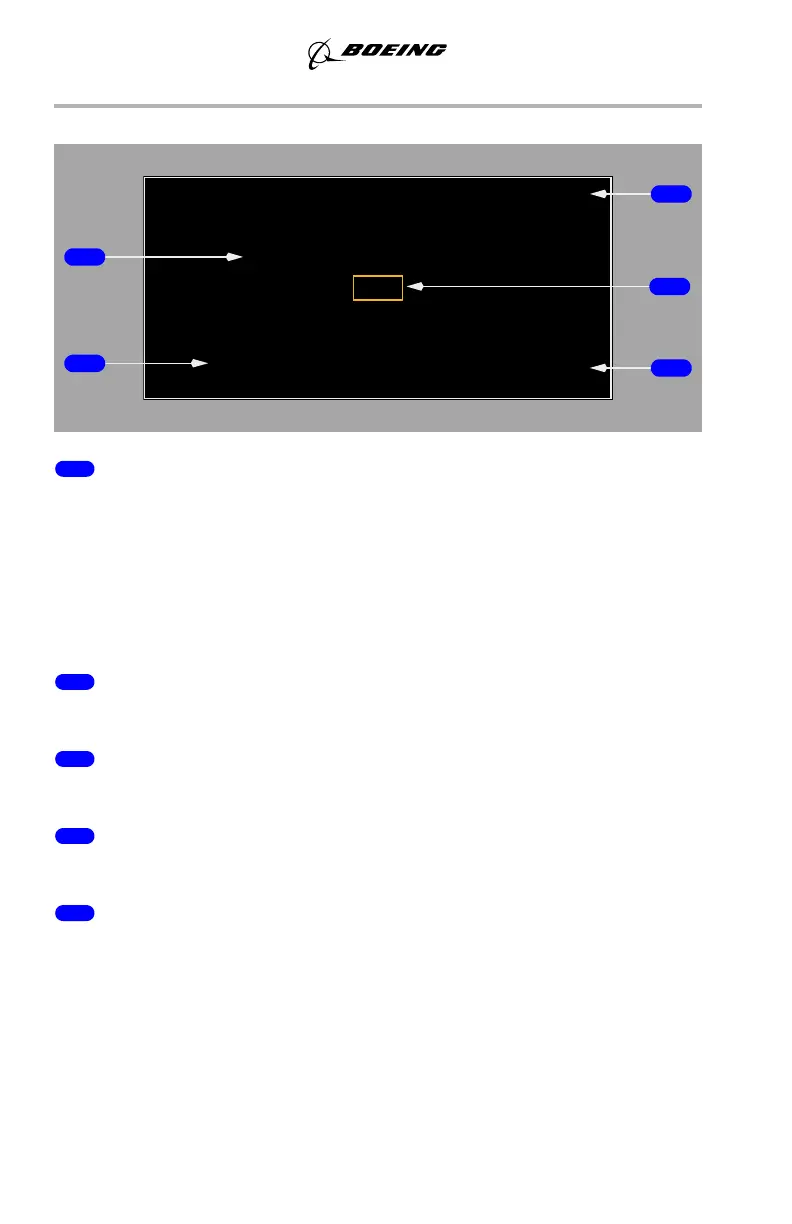

Vertical Situation Display (VSD)
1 Range Disagreement Annunciations (amber)
MAP RANGE DISAGREE – Indicates selected range on the EFIS control panel
is different than the MAP display range.
TERR RANGE DISAGREE – Indicates selected range on the EFIS control panel
is different than the Terrain display range.
MAP/TERR RANGE DISAGREE – Indicates selected range on the EFIS control
panel is different than the MAP and Terrain display ranges.
2 Runway Data Annunciation (amber)
FMC runway data is not available.
3 Route Waypoints Modification Annunciation (white)
FMC active route is being modified. Only active waypoint is displayed.
4 VSD Failure Flag (amber)
VSD cannot be displayed.
5 Terrain Data Failure Annunciation (amber)
EGPWS terrain data is not available. Annunciation is replaced with VSD TERR
INHIBIT when GPWS control panel TERR INHIBIT switch is in the inhibit
position.
VSD
VSD TERR
MOD RTE
RWY DATA
MAP/TERR RANGE DISAGREE
September 15, 2016
