Standby Flight Instruments
The standby flight instruments include the:

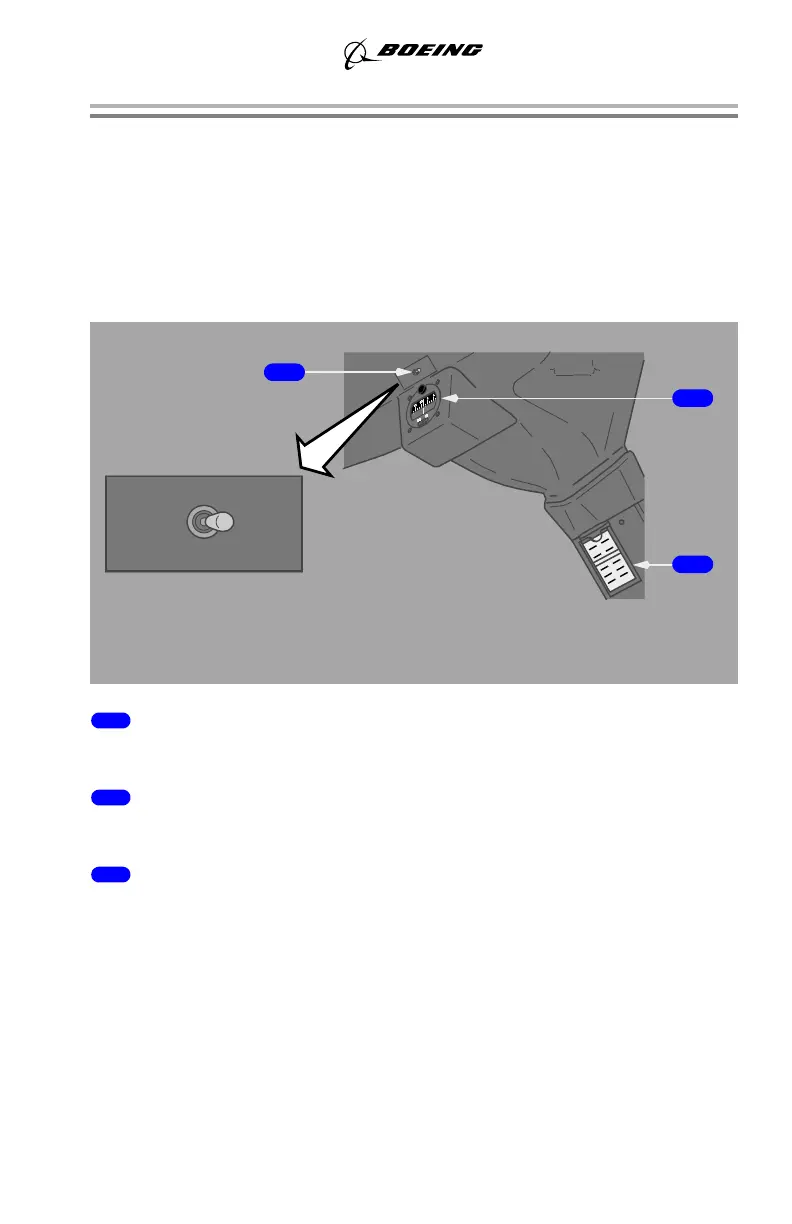

Standby Magnetic Compass
1 Standby Magnetic Compass
Displays magnetic heading.
2 Standby Magnetic Compass Correction Card
Provides appropriate heading corrections.
3 Compass Light Switch
OFF – compass light is extinguished.
BRT – sets compass light to full brightness.
DIM – sets compass light to low brightness.
