737 Flight Crew Operations Manual
Flight Instruments, Displays -
Head-Up Display System,
Symbology
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 10.42.17

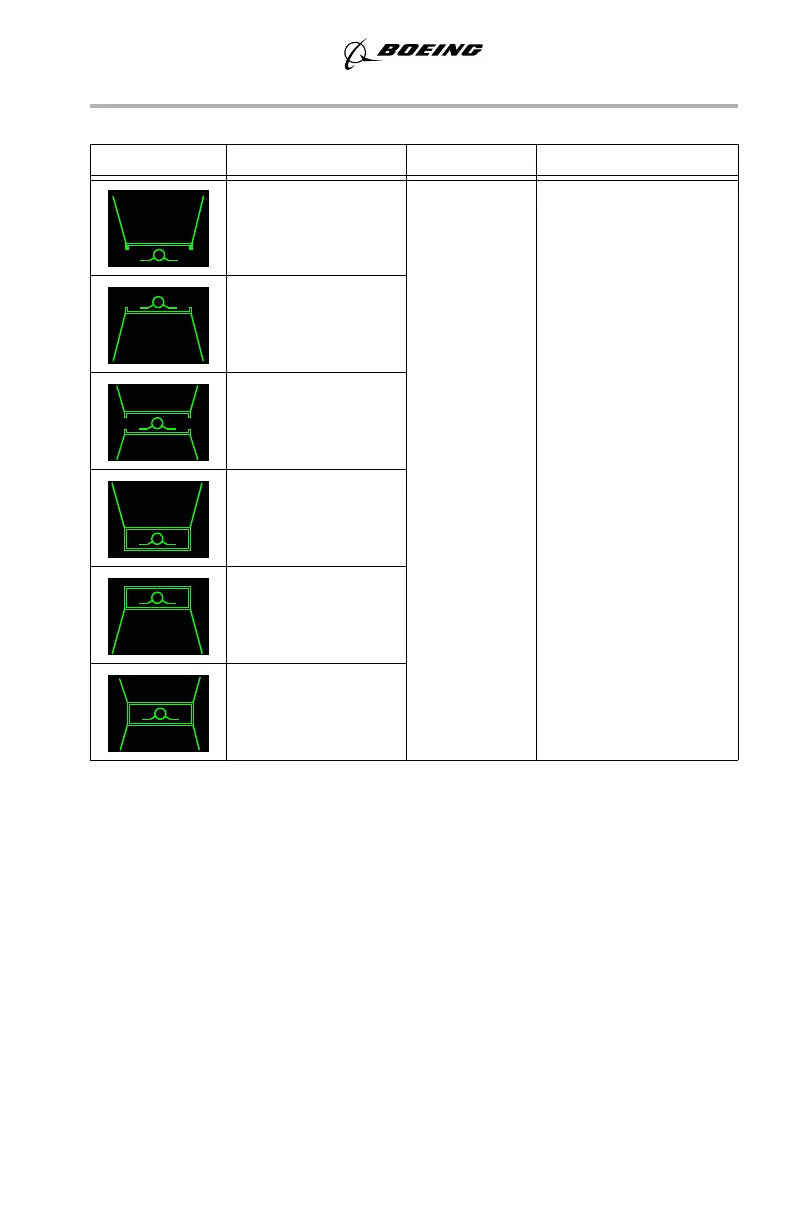

TCAS Resolution Advisory
SYMBOL NAME MODE REMARKS
Down preventive PRI in flight,
AIII
approach,
IMC, VMC
Area(s) inside the lines
indicate the pitch
region(s) to avoid in
order to resolve the
traffic conflict. The
flight path symbol
should be positioned
outside the pitch
command area(s) to
ensure traffic
avoidance. A
double-lined box
indicates a corrective
action is required, and
represents TCAS
maneuver guidance to
maintain or increase
separation from the
traffic.
Up preventive
Up and down
preventive
Descend corrective
Climb corrective
Combined
corrective
