737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
10.16.2 D6-27370-866-EGP
5 Barometric (BARO) Reference Selector (outer) (two position)
IN – selects inches of mercury as the barometric altitude reference.
HPA – selects hectopascals as the barometric altitude reference.
6 Barometric (BARO) Selector (middle) (slew)
ROTATE –
• adjusts the barometric altitude setting on the altitude tape
• if STD displayed, adjusts the preselected BARO reference.
7 Barometric (BARO) Standard (STD) Switch (inner) (momentary
action)
PUSH –
• selects the standard barometric setting (29.92 inches Hg/1013 HPA) for
barometric altitude reference
• if STD is displayed, selects the preselected barometric reference
• if no preselected barometric is displayed, displays the last value before
STD was selected.
8 Flight Path Vector (FPV) Switch (momentary action)
PUSH – displays flight path vector and horizon line heading scale on the attitude
indicator.

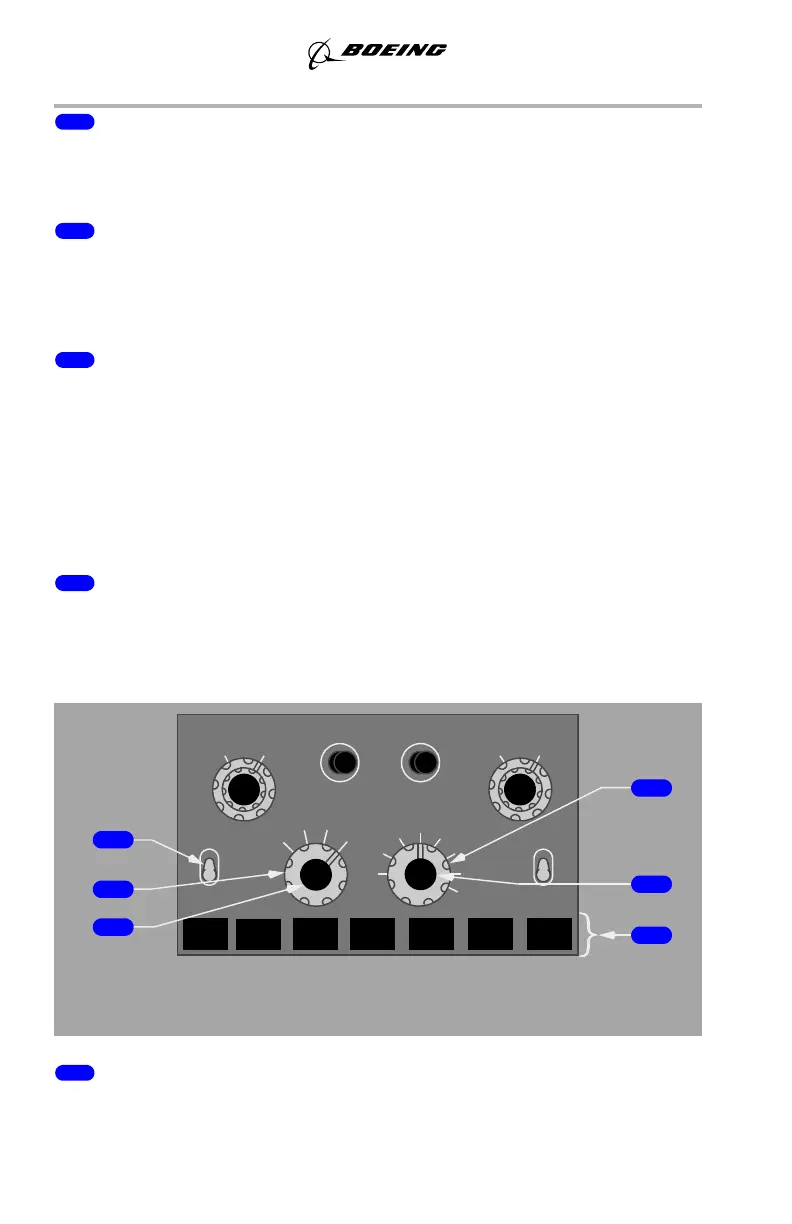

EFIS Control Panel Controls – Navigation Displays
1 VOR/ADF Switch (three position)
Displays VOR or ADF information on all navigation modes except PLAN.
VOR
ADF
1
1
VOR
ADF
2
2
5
10
20
40
80
160
320
640
MINS
BARO
FPV MTRS
BARO
IN HPA
OFF
APP
VOR MAP
PLN
WXR STA WPT ARPT DATA POS
OFF
RST STD
TERR
CTR
TFC
RADIO
GLARESHIELD
4
5
6
1
3
2
