6 Keyboard
Push –
• alpha keys:
• data displays are controlled by the keyboard when the N, S, E, W
(latitude/longitude) or H (heading) keys are pushed
• pushing an alpha key arms the keyboard for numeric entries.
• numeric keys:
• permit manual entry of present position when ALIGN light is
illuminated
• permit manual entry of magnetic heading when either mode selector
is in ATT.
7 Clear (CLR) Key
Illuminated (white) – an ENT attempt has failed (entry not accepted by IRS).
Push – clears data display of any data not yet entered or accepted. If illuminated,
cue lights extinguish.

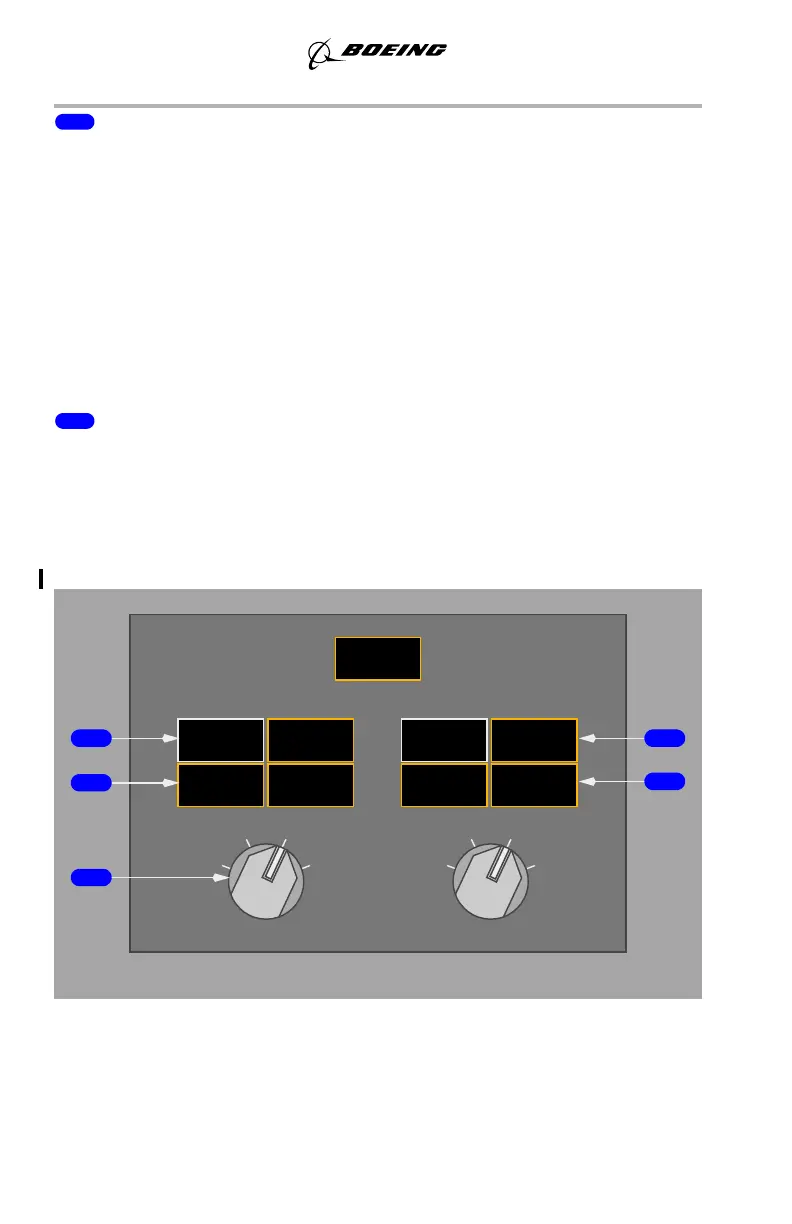

IRS Mode Selector Unit
YK981 - YQ456
IRSLR
ALIGN
DC FAILFAULT
ALIGN
FAULT
OFF
NAVALIGN
DC FAIL
ATT
OFF
NAVALIGN
ATT
ON DC
ON DC
