737 Flight Crew Operations Manual
Flight Management, Navigation -
Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 11.10.17
YW273, YW274

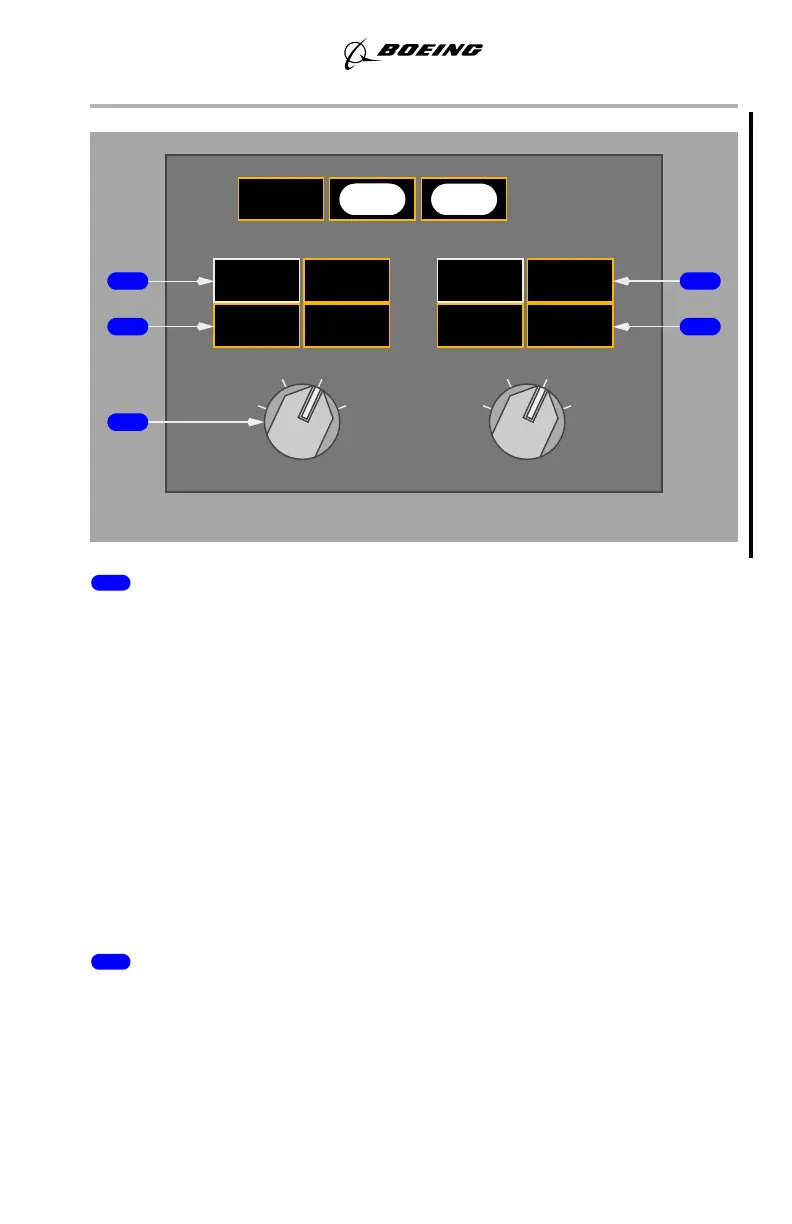

1 ALIGN Light
Illuminated (white) –
• steady – the related IRS is operating in the ALIGN mode, the initial
ATT mode, or the shutdown cycle
• flashing – alignment cannot be completed due to IRS detection of:
• significant difference between previous and entered positions or an
unreasonable present position entry
• no present position entry.
Extinguished –
• IRS not in ALIGN mode
• with mode selector in NAV, alignment is complete, and all IRS
information is available
• with mode selector in ATT, attitude information is available. Heading
information is available following entry of initial magnetic heading.
2 FAULT Light
Illuminated (amber) – a system fault affecting the related IRS ATT and/or NAV
modes has been detected.
IRSLR
ALIGN
DC FAILFAULT
ALIGN
FAULT
OFF
NAV
ALIGN
DC FAIL
ATT
OFF
NAV
ALIGN
ATT
ON DC
ON DC
GPS ILS GLS
INOP INOP
