Boeing 737-800 - Exterior Lighting Locations

737 Flight Crew Operations Manual
Airplane General, Emergency
Equipment, Doors, Windows -
Systems Description
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 1.40.3

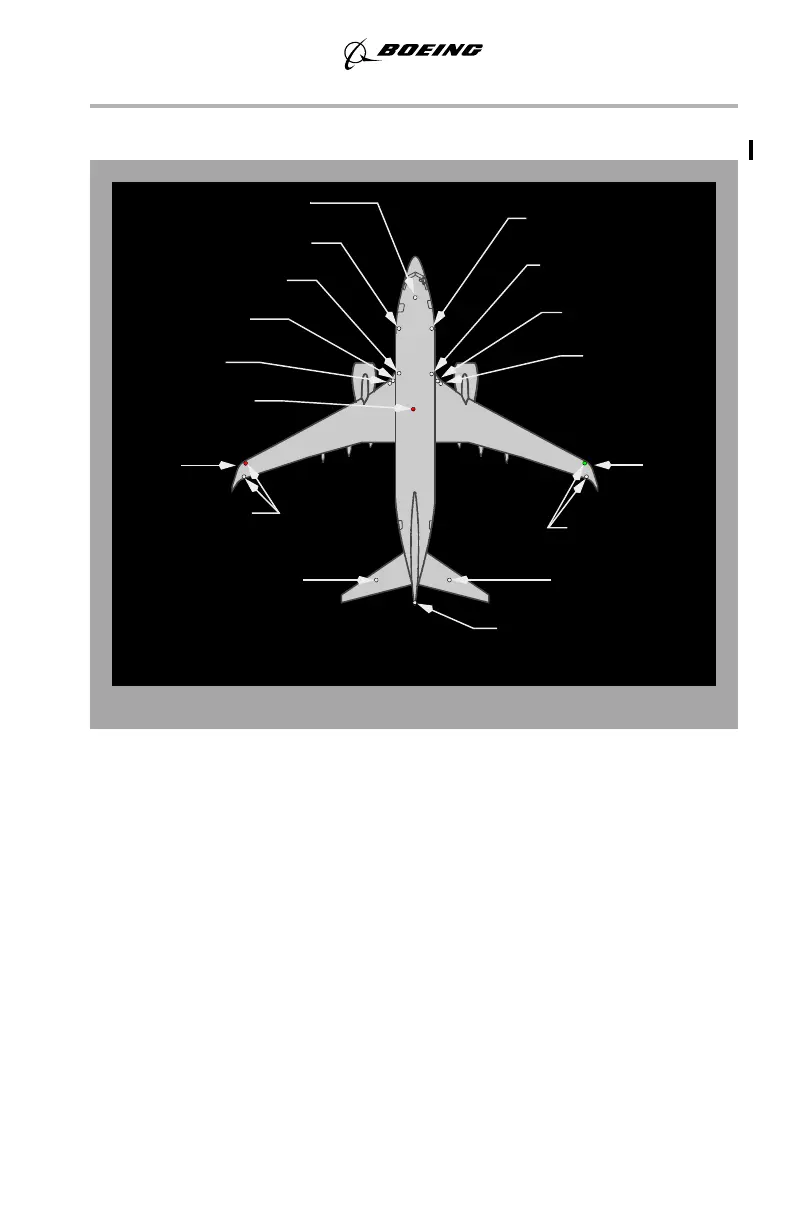

Exterior Lighting Locations
YK981 - YQ456
(RED STROBE LIGHT)
ANTI-COLLISION LIGHT
UPPER AND LOWER
STROBE LIGHT (WHITE)
(GREEN AND WHITE)
LIGHTS (WHITE)
WING ILLUMINATION
(WHITE, NOSE GEAR)
TAXI LIGHT
POSITION LIGHTS
RETRACTABLE LANDING
RUNWAY TURNOFF
FIXED LANDING
LOGO LIGHT (WHITE)
LIGHTS (WHITE)
LIGHTS (WHITE)
WING ILLUMINATION
RETRACTABLE LANDING
LIGHTS (WHITE)
LIGHTS (WHITE)
LIGHTS (WHITE)
RUNWAY TURNOFF
LIGHTS (WHITE)
FIXED LANDING
LIGHTS (WHITE)
STROBE
STROBE
POSITION LIGHTS
(RED AND WHITE)
LIGHT (WHITE)
LIGHT
(WHITE)
LOGO LIGHT (WHITE)
September 15, 2016
