737 Flight Crew Operations Manual
Flight Instruments, Displays -
Head-Up Display System -
Displays
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 10.12.13
Failure Indications and Flags
Dashes replace numbers if there is no computed information. Failure flags replace
symbols or failure messages are displayed, as appropriate.
Data source flags are provided in a few cases to annunciate the source of displayed
data when other than normal.

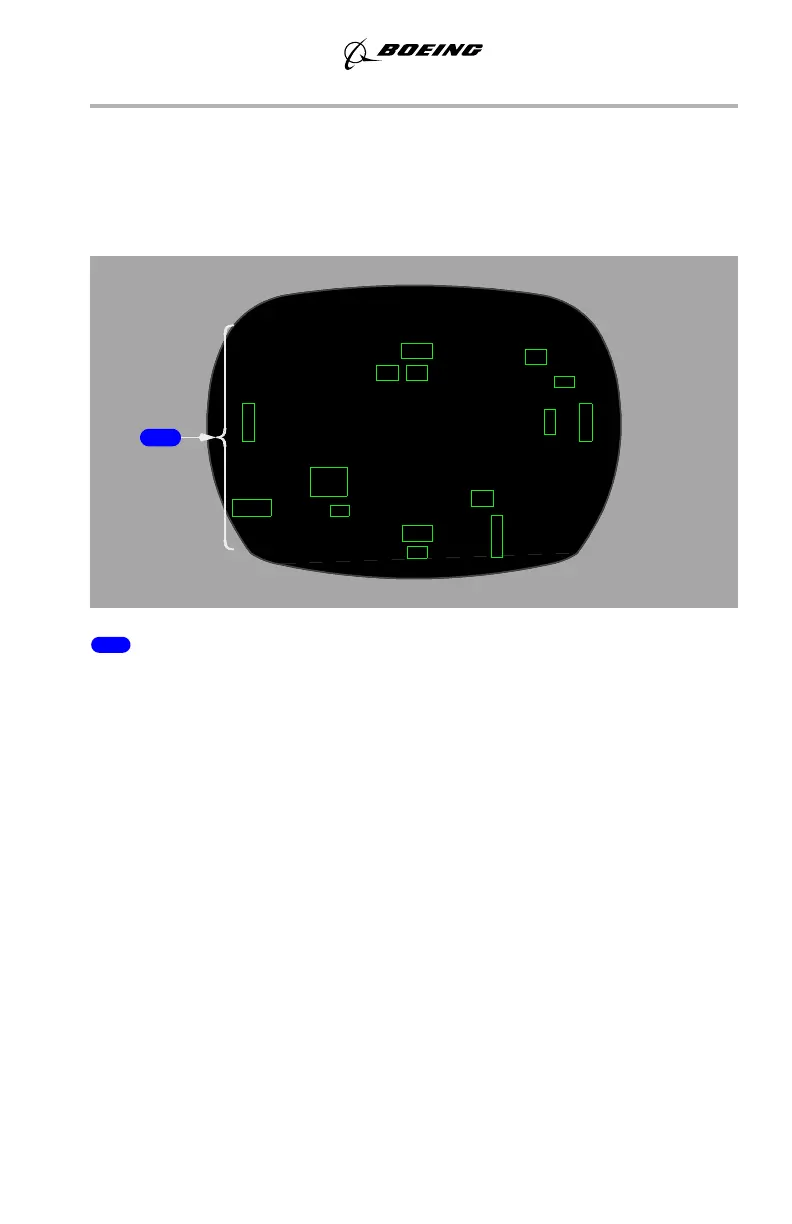

1 HUD System Failure Indications and Flags
See section 42 for detailed information on the HUD system failure indications and
flags.
