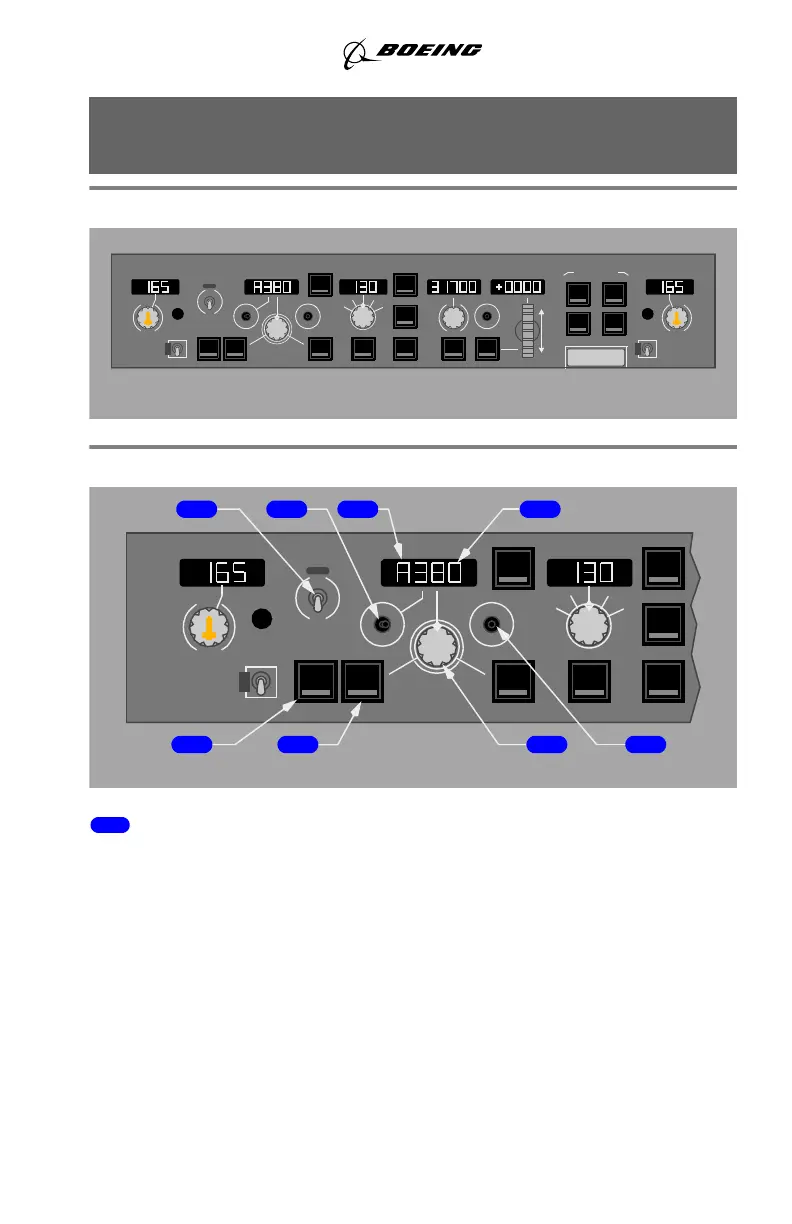

Mode Control Panel (MCP)
Speed Controls
1 Autothrottle (A/T) ARM Switch
ARM – Arms A/T for engagement. Magnetically held at ARM. A/T engages
automatically when following AFDS modes are engaged:
•LVL CHG
•ALT ACQ
•V/S
• VNAV
• ALT HOLD
• G/S capture
• TO/GA.
The indicator light illuminates green when A/T ARM switch is in the ARM
position.
