737 Flight Crew Operations Manual
Airplane General, Emergency
Equipment, Doors, Windows -
Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 1.30.7

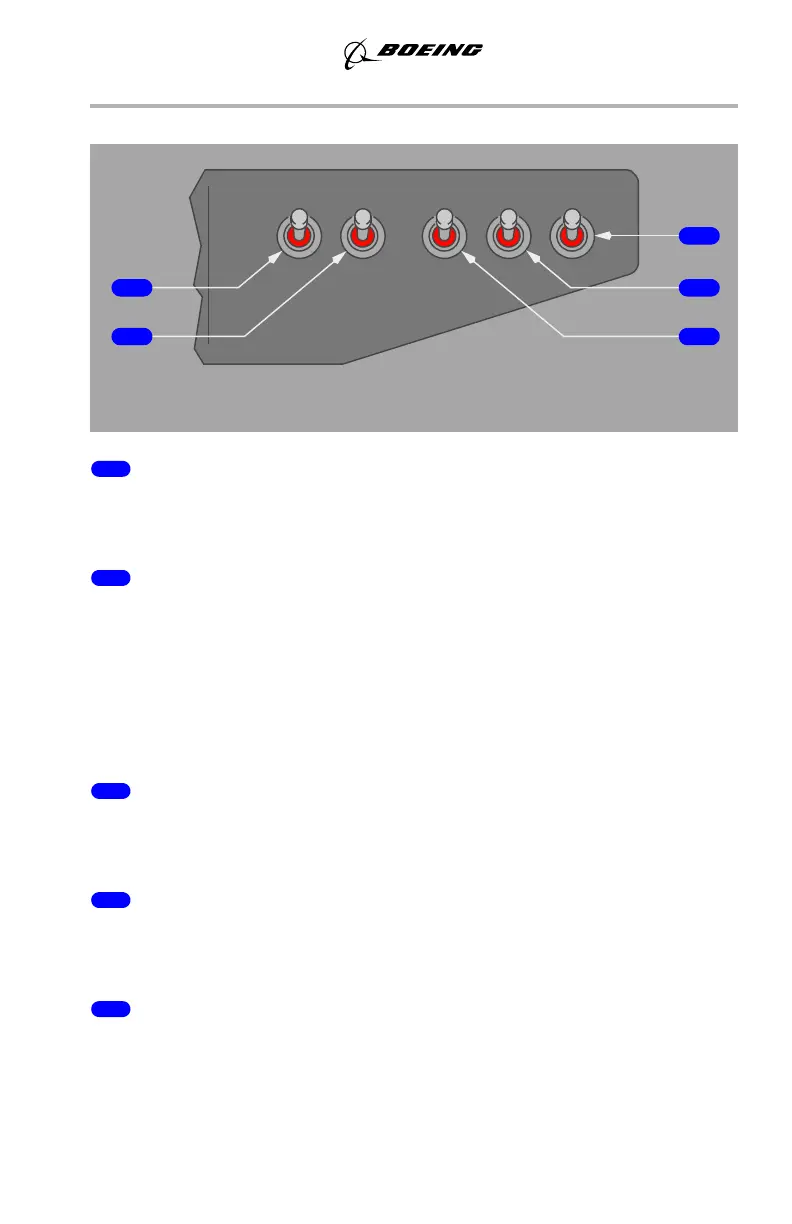

Miscellaneous Exterior Lights
1 LOGO Light Switch
OFF – logo lights on each side of vertical fin extinguished.
ON – logo lights illuminated.
2 POSITION Light Switch
STROBE & STEADY – red and green wing–tip position lights, white trailing
edge wing–tip lights and wing–tip and tail strobe lights illuminated.
OFF – red and green wing–tip position lights, white trailing edge wing–tip lights
and wing–tip and tail strobe lights extinguished.
STEADY – red and green wing–tip position lights and white trailing edge wing–
tip lights illuminated.
3 WHEEL WELL Light Switch
OFF – three wheel well lights extinguished.
ON – wheel well lights illuminated.
4 WING Illumination Switch
OFF – wing leading edge lights on fuselage forward of wing extinguished.
ON – wing leading edge lights illuminated.
5 ANTI–COLLISION Light Switch
OFF – red strobe/rotating beacon lights on upper and lower fuselage extinguished.
ON – red strobe/rotating beacon lights illuminated.
STROBE &
STEADY
OFF OFFOFF OFF
ON ON ON ON
LOGO WING
POSITION WHEEL
WELLCOLLISION
ANTI
OFF
STEADY
FORWARD OVERHEAD PANEL
1
2
3
4
5
September 15, 2016
