Boeing 737-800 - Exterior Door Annunciator Lights

737 Flight Crew Operations Manual
Airplane General, Emergency
Equipment, Doors, Windows -
Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
1.30.16 D6-27370-866-EGP

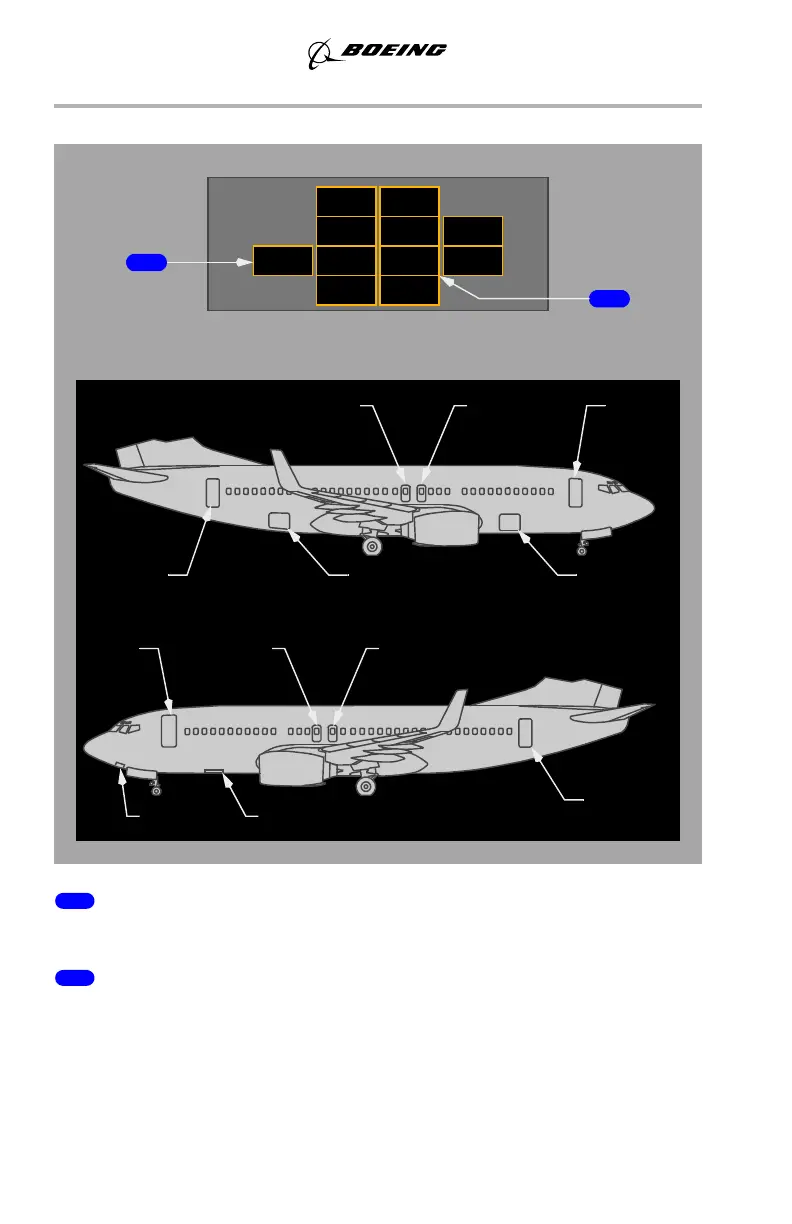

Exterior Door Annunciator Lights
1 Exterior Door Annunciations
Illuminated (amber) – related door is not closed and locked.
2 Overwing Exit Annunciations
Illuminated (amber) –.
• related overwing exit is not closed and locked
• related flight lock failed to engage when commanded locked.
CARGO
OVERWING
FWD
RIGHT FWD
ENTRY
AFT
SERVICE
OVERWING
OVERWING
OVERWING
EQUIP
LEFT FWD
LEFT AFT
RIGHT AFT
AFT
CARGO
AFT
ENTRY
FWD
SERVICE
FWD
FORWARD OVERHEAD PANEL
1
2
RIGHT AFT
OVERWING
RIGHT FWD
OVERWING
EQUIPEQUIP
AFT
AFT CARGO
FWD
SERVICE
CARGO
FWD
ENTRY
AFT
ENTRY
FWD
SERVICE
LEFT FWD
OVERWING
LEFT AFT
OVERWING
