737 Flight Crew Operations Manual
Landing Gear -
Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 14.10.7

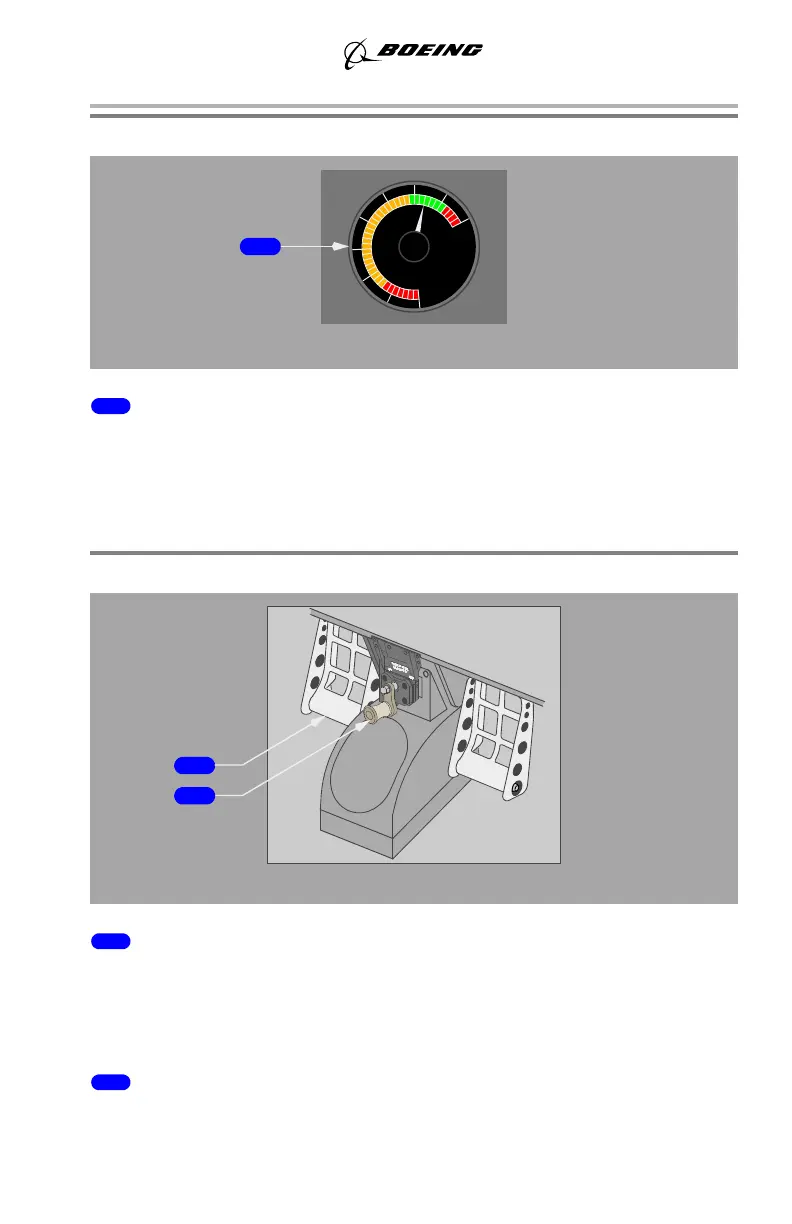

Hydraulic Brake Pressure Indicator
1 Hydraulic Brake Pressure (HYD BRAKE PRESS) Indicator
Indicates brake accumulator pressure:
• normal pressure – 3000 psi
• maximum pressure – 3500 psi
• normal precharge – 1000 psi.
Rudder/Brake Pedals
1 Rudder/Brake Pedals
Push full pedal – turns nose wheel up to 7 degrees in either direction.
Push top of pedal only – activates wheel brakes.
Refer to Chapter 9 Flight Controls for rudder description.
2 RUDDER PEDAL ADJUSTMENT Crank
AFT (counter–clockwise) – adjusts rudder pedals aft.
BRAKE
PRESS
0
PSIx1000
1
2
3
4
RIGHT FORWARD PANEL
1
CREW STATION
2
1
