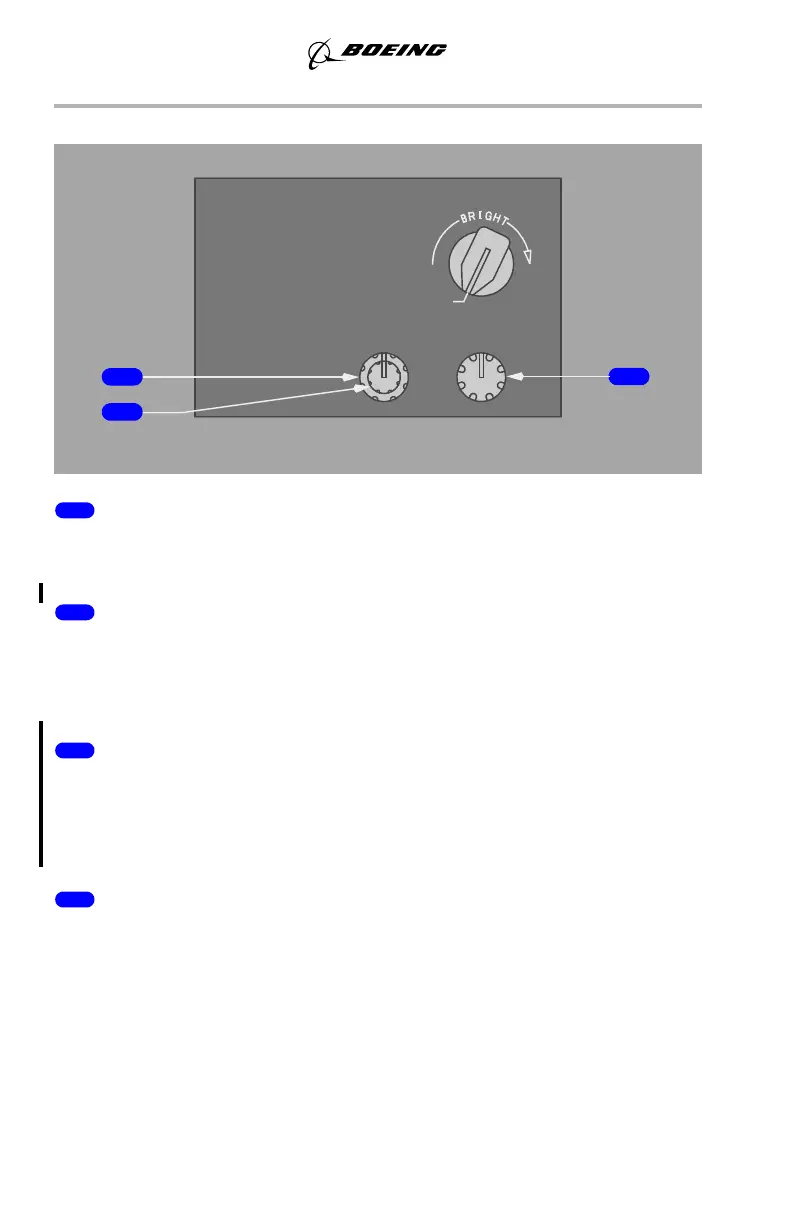

First Officer Brightness Controls
1 Inboard Display Unit Brightness (INBD DU BRT) Control (outer)
(rotary)
ROTATE – adjusts the brightness of the First Officer inboard display unit.
YK981 - YQ456
2 Inboard Display Unit Radar Brightness (INBD DU BRT) Control
(inner) (rotary)
ROTATE – adjusts weather radar and terrain display brightness on the First
Officer inboard display unit.
YW273, YW274
2 Inboard Display Unit Brightness/Contrast (INBD DU BRT) Control
(inner) (rotary)
ROTATE – adjusts weather radar and terrain display brightness on the First
Officer inboard display unit, adjusts display contrast when MFD is in the video
surveillance mode.
3 Outboard Display Unit Brightness (OUTBD DU BRT) Control (rotary)
ROTATE – adjusts the brightness of the First Officer outboard display unit.
INBD DU
BRT
OUTBD DU
BRT
MAIN PANEL
OFF
RIGHT FORWARD PANEL
3
1
2
