• Inboard Multifunction Display (INBD MFD) – displays PFD on the
outboard display unit and blanks the inboard display unit. The inboard
display unit stays blank until system format (SYS) or secondary engine
format (ENG) is selected with MFD switches on the engine display
control panel.
YW273, YW274
• Inboard Multifunction Display (INBD MFD) – displays PFD on the
outboard display unit and blanks the inboard display unit. The inboard
display unit stays blank until system format (SYS) or secondary engine
format (ENG) is selected with MFD switches on the engine display
control panel or video surveillance (DSPL) is selected on the flight deck
entry video panel. In the normal display configuration, video
surveillance is available only on the lower display unit.
2 Lower Display Unit (LOWER DU) Selector
Selects what is displayed on the lower display unit:
• Engine Primary (ENG PRI) – displays the primary engine instruments
on the lower display unit and blanks the upper display unit
YK981 - YQ456
• Normal (NORM) – display unit is normally blank or displays MFD
format selected on the engine display control panel
YW273, YW274
• Normal (NORM) – display unit is normally blank or displays MFD
format selected on the engine display control panel or video surveillance
(DSPL) selected on the flight deck entry video panel
• Navigation Display (ND) – displays the navigation display on the lower
unit.

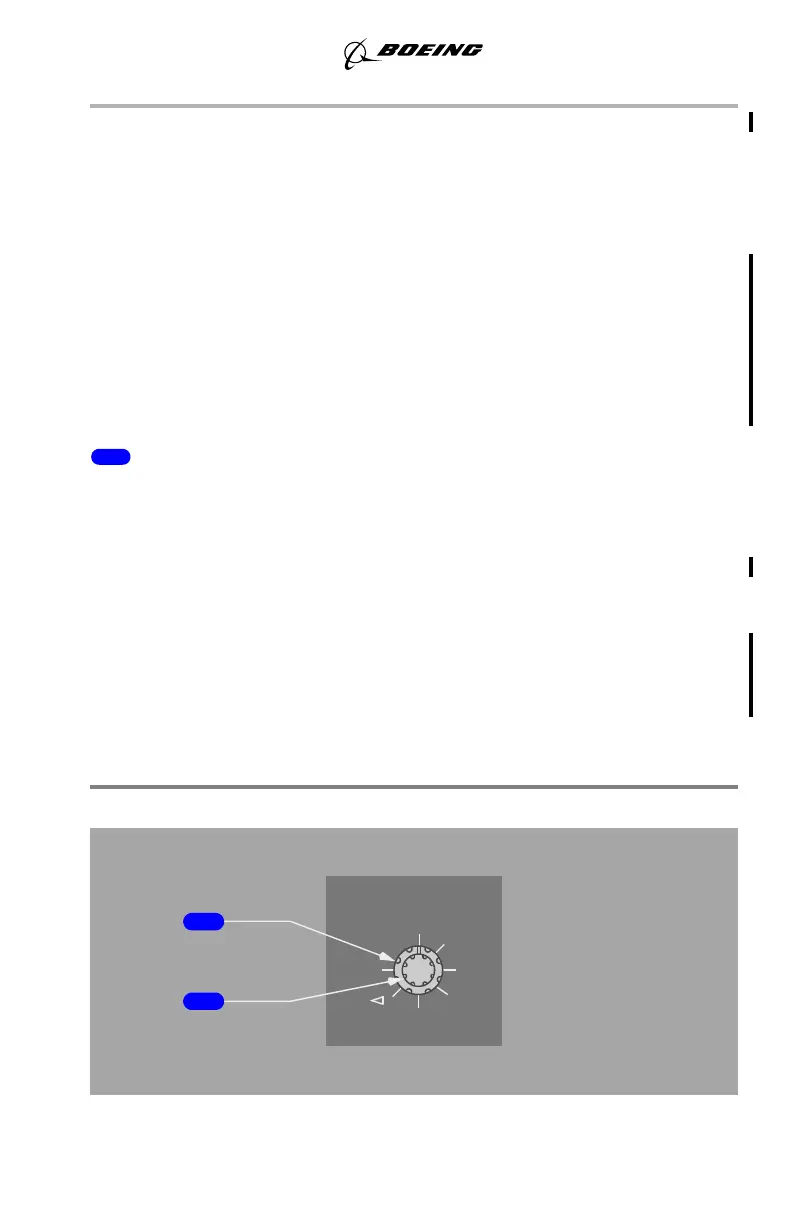

Speed Reference Selector
SET
R
REF
V
1
AUTO
SPD REF
WT
V
V
1
