Boeing 737-800 - 10 Controls and Indicators; Fuel Control Panel

737 Flight Crew Operations Manual
Fuel Chapter 12
Controls and Indicators Section 10
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 12.10.1
10 Controls and IndicatorsControls and IndicatorsFile Highlight

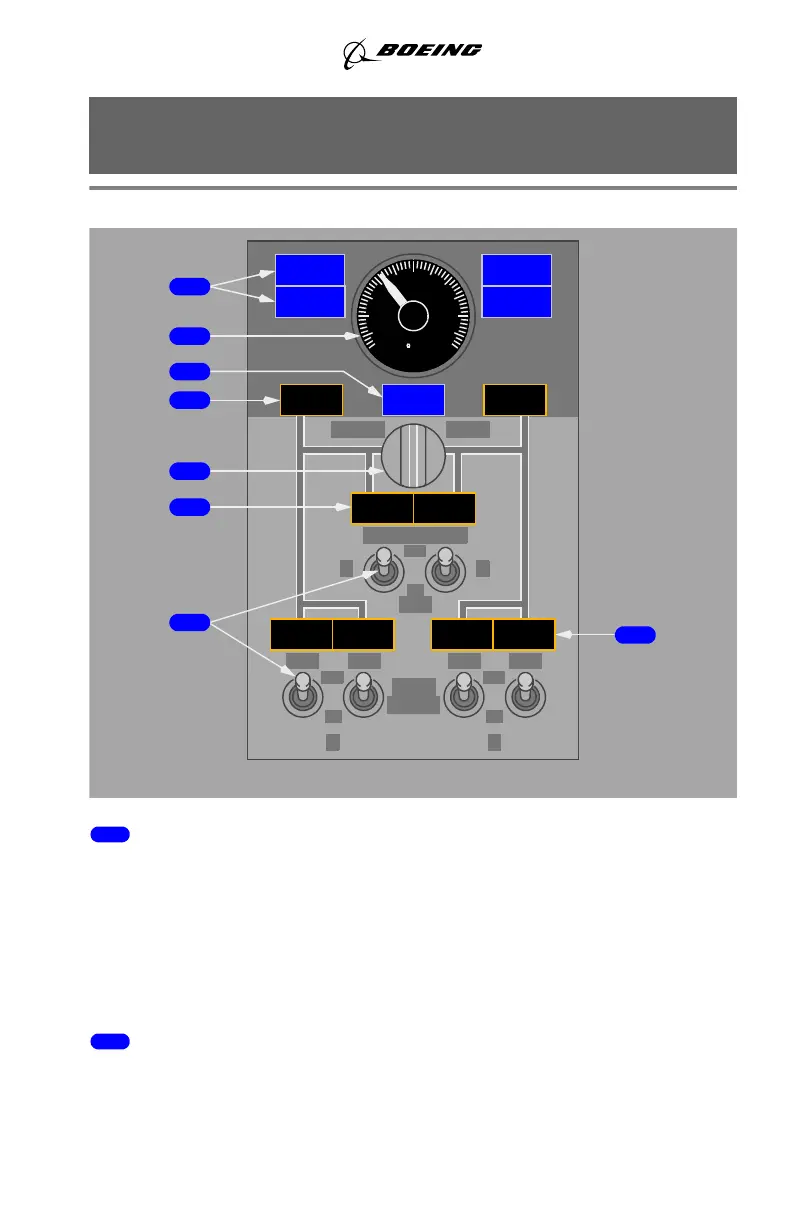

Fuel Control Panel
1 Engine Valve Closed (ENG VALVE CLOSED) and SPAR VALVE
CLOSED Lights
Extinguished – related engine or spar fuel shutoff valve is open.
Illuminated (blue) –
• bright – related engine or spar fuel shutoff valve is in transit, or valve
position and engine start lever or engine fire switch disagree.
• dim – related engine or spar fuel shutoff valve is closed.
2 FUEL Temperature (TEMP) Indicator
Indicates fuel temperature in No. 1 tank.
FEED
C
PUMPS
FUEL
2
AFTFWDFWDAFT
ON
OFF
1
ON
OFF
CTR
R
ON
CROSS
VALVE
OPEN
L
OFF
FUEL PUMPS
-20
-40 +40
+20
TEMP
0
FUEL
ENG VALVE
CLOSED
SPAR VALVE
CLOSED
ENG VALVE
CLOSED
SPAR VALVE
CLOSED
BYPASS
FILTER
PRESSURE
LOW
PRESSURE
LOW
PRESSURE
LOW
PRESSURE
LOW
FILTER
BYPASS
PRESSURE
LOW
PRESSURE
LOW
8
FORWARD OVERHEAD PANEL
1
2
3
4
5
6
7
September 18, 2008
