737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – System Description
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
10.21.10 D6-27370-866-EGP

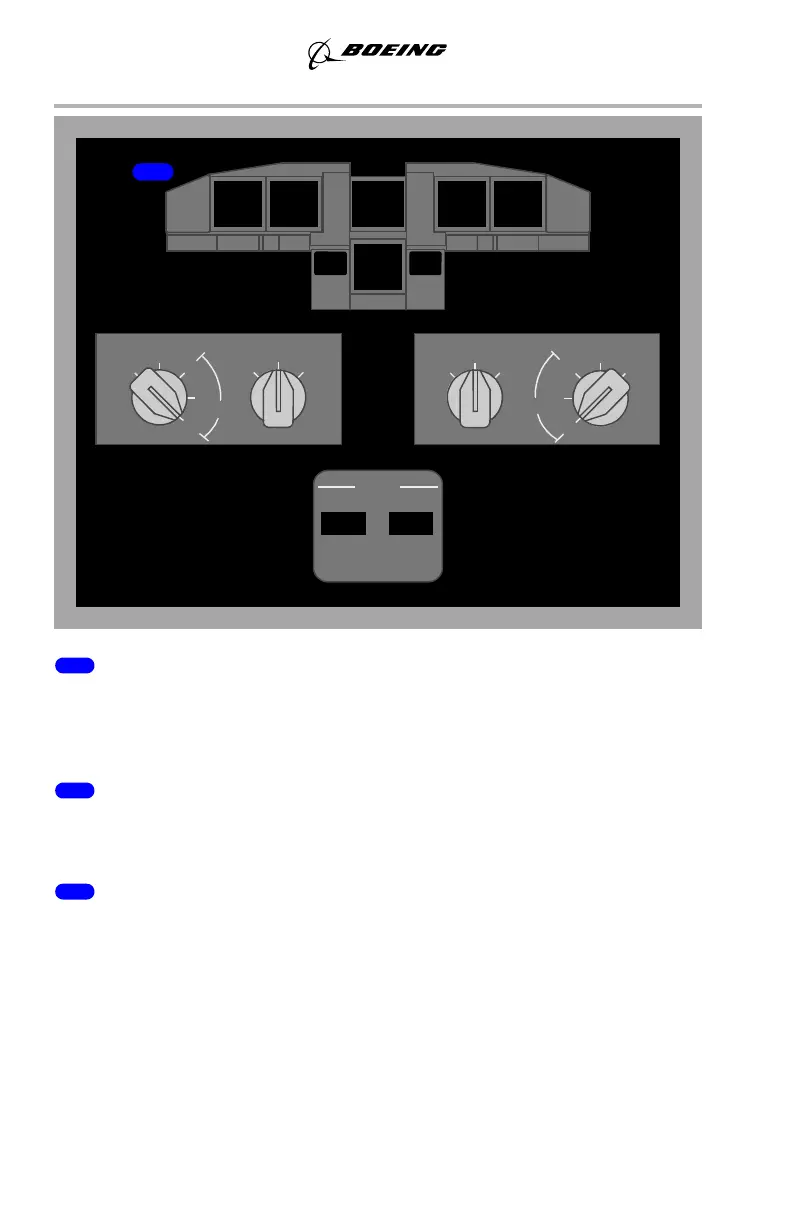

1 MAIN PANEL DUs Switch to INBD ENG PRI
If the MAIN PANEL DUs switch is turned to INBD ENG PRI, the primary engine
display moves to the inboard DU, the PFD format is displayed on the outboard DU
and the upper DU blanks.
2 MAIN PANEL DUs Switch to INBD PFD
If the MAIN PANEL DUs switch is turned to INBD PFD, the PFD format is
displayed on the inboard DU and the outboard DU blanks.
3 MAIN PANEL DUs Switch to MFD
If the MAIN PANEL DUs switch is turned to INBD MFD, the PFD continues to
be displayed on the outboard display unit and the inboard display is blank. The
system format (SYS) or secondary engine format (ENG) can then be selected to
the inboard display unit and lower display unit with the MFD switches on the
engine display control unit.
