737 Flight Crew Operations Manual
Flight Management, Navigation -
Flight Management System
Operation
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 11.31.29

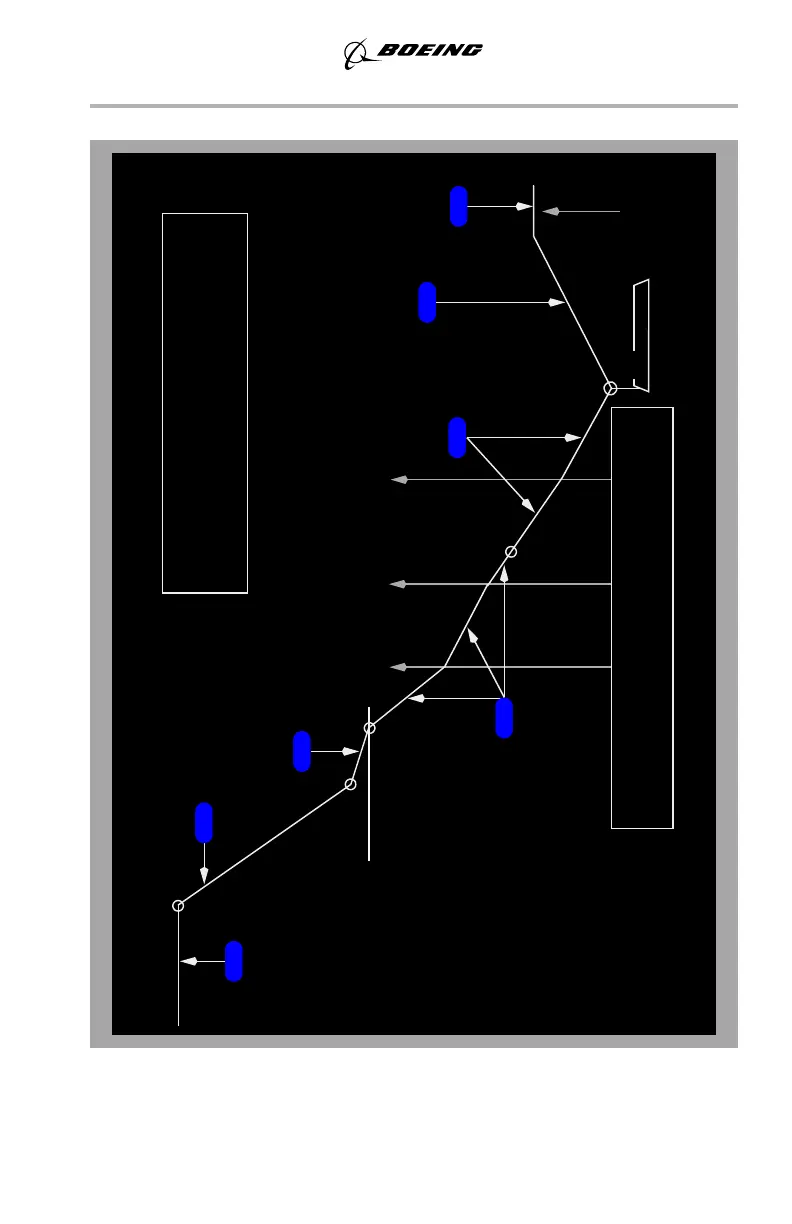

VNAV Cruise and Path Descent Profile (Instrument Approach using VNAV)
T/D
50'
10,000'
ALTITUDE
MISSED APP
E/D
EPG
FAF
MNO
DECEL
VNAV PTH
1
VNAV PTH
5
6
VNAV PTH
4
NOTE: SELECTION OF TO/GA BELOW 2000 FEET RA:
• STARTS A MISSED APPROACH
• SETS REDUCED GO–AROUND THRUST
• RESETS FMC CRUISE ALTITUDE
VNAV SPD
AT 4000'
CROSS
EPG
RESTRICTION
WAYPOINT
AT 7000'
CROSS
MNO
CROSS AT
FAF ALT AND
VREF 40+20
VNAV PTH
3
VNAV PTH
2
7
VNAV PTH
September 15, 2016
