737 Flight Crew Operations Manual
Airplane General, Emergency
Equipment, Doors, Windows -
Systems Description
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
1.40.44 D6-27370-866-EGP

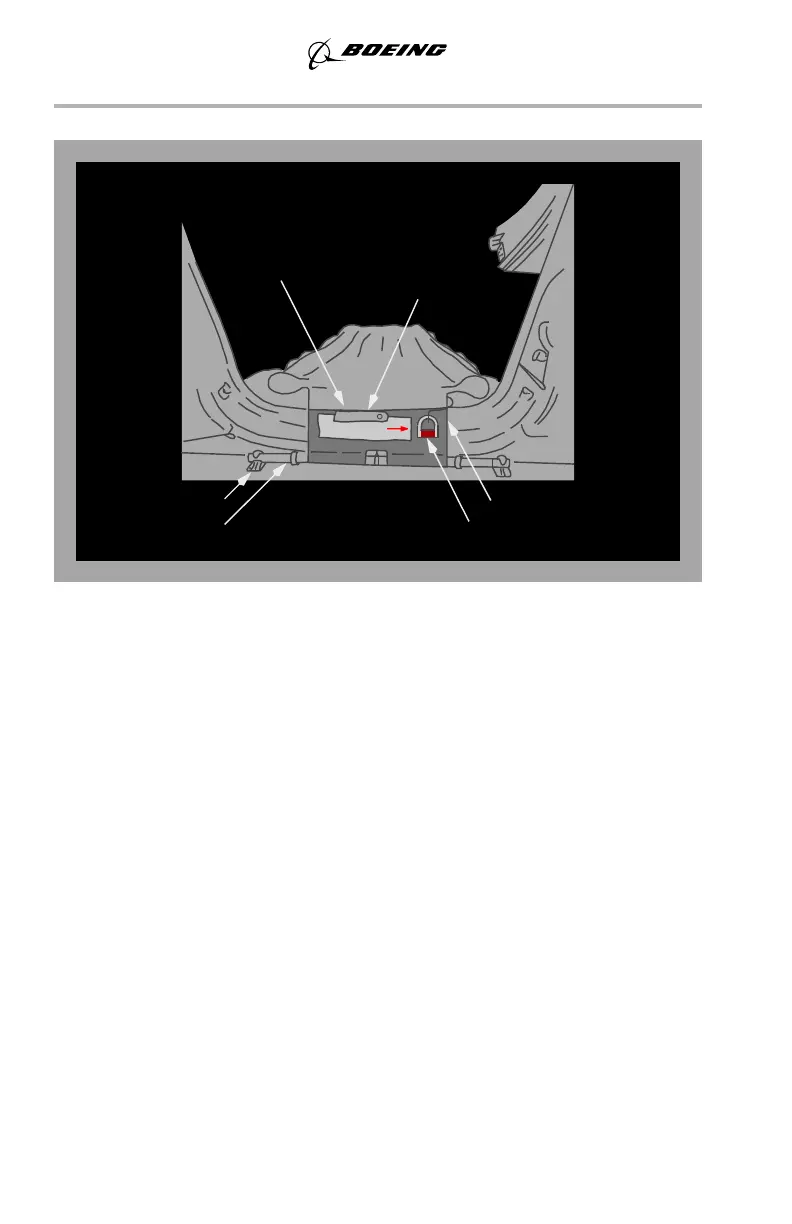

Escape Slide Detachment Handle
GIRTFLOOR BRACKETS
GIRT BAR
DETACHMENT
MANUAL INFLATION HANDLE
PULL
PULL
2. PULL HANDLE
1. LIFT FLAP
FOR DITCHING ONLY
TO RELEASE SLIDE
P
U
L
L
T
O
I
N
F
L
A
T
E
HANDLE
September 15, 2016
