737 Flight Crew Operations Manual
Air Systems -
Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 2.10.9
YW273, YW274

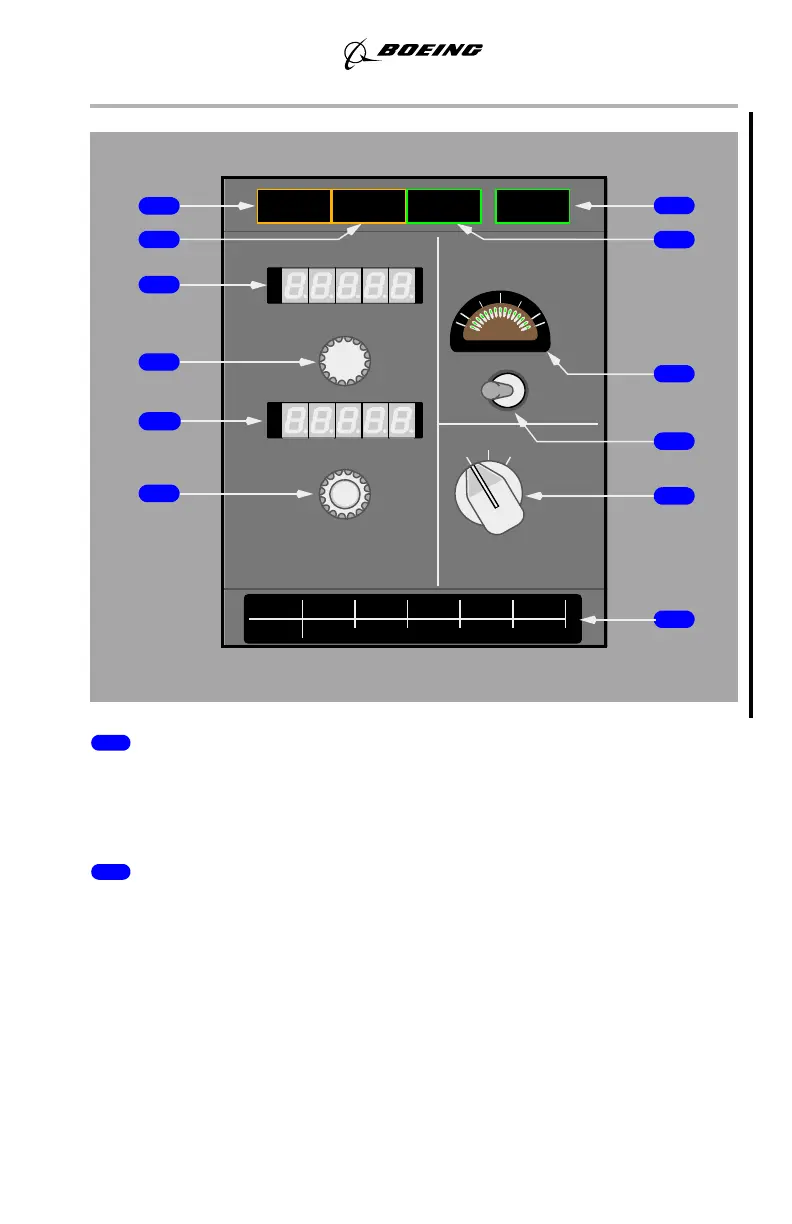

1 AUTO FAIL Light
Illuminated (amber) – automatic pressurization system failure detected:
• indicates a single controller failure when ALTN light is also illuminated
• indicates a dual controller failure when illuminated alone.
2 OFF Schedule (SCHED) DESCENT Light
Illuminated (amber) – airplane descended before reaching the planned cruise
altitude set in the FLT ALT indicator.
