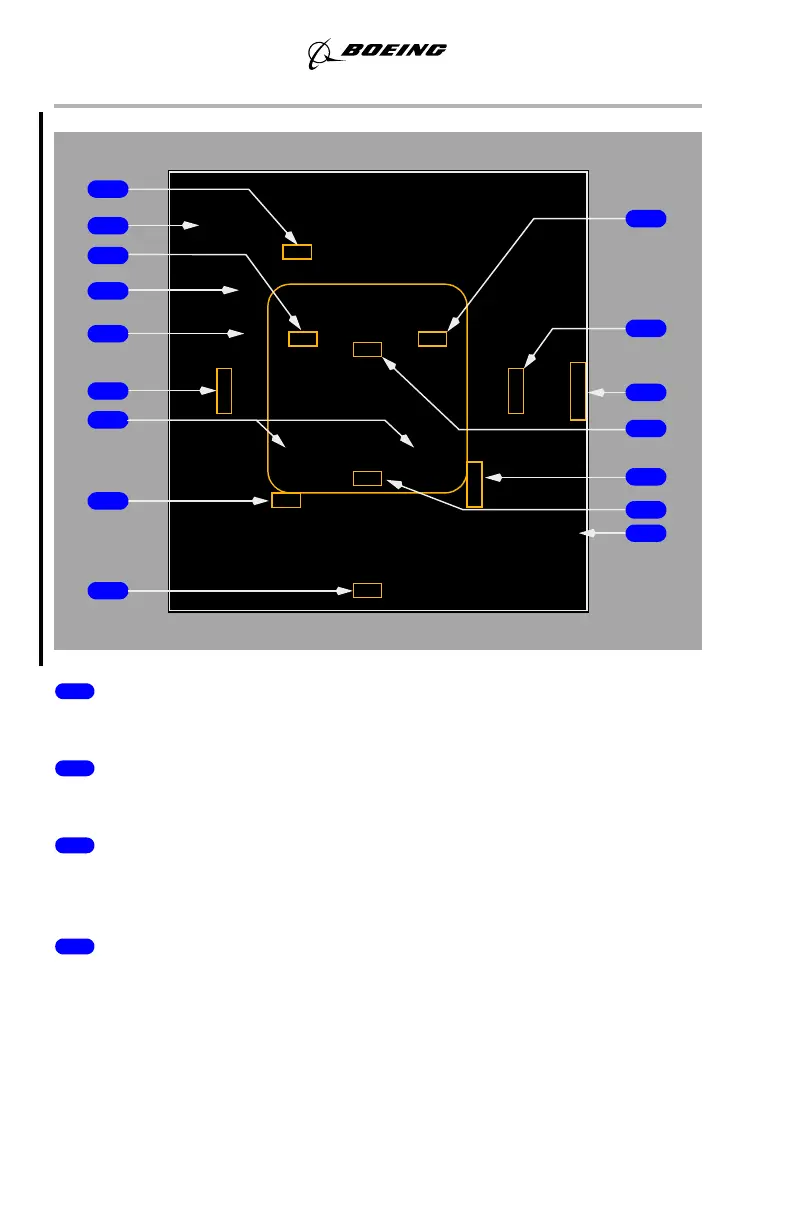

1 Distance Measuring Equipment (amber)
The DME system has failed.
2 Selected Speed (amber)
The selected airspeed data is invalid.
3 Flight Path Vector Flag (amber)
FPV is selected on the EFIS control panel, but has failed. De–selection of FPV
removes the flag.
4 Speed Limit Flag (amber)
Displays related with stick shaker or maximum operating speed has failed:
• if the stick shaker warning has failed, the red and black stick shaker
speed bar is removed
• if the maximum operating speed has failed, the red and black maximum
operating speed bar is removed.
HDG
T
R
E
V
T
L
A
S
/
G
P
S
D
RA
FPV
ATT
FD
LOC
DME
ALT
LDG
V
D
P
S
NO
LIM
SPD
SEL SPD
PITCH
ROLL
9
8
5
7
1
3
4
2
12
11
13
14
15
16
6
10
