737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – Displays
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
10.11.40 D6-27370-866-EGP

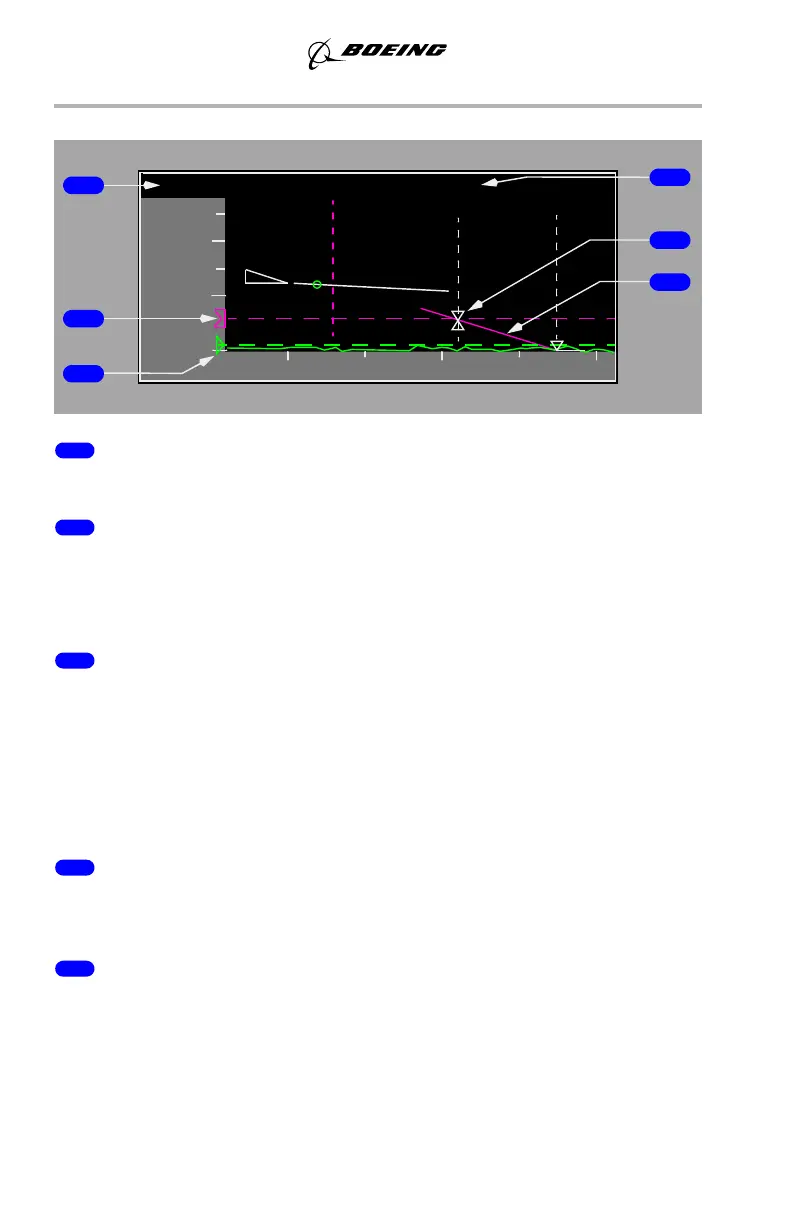

Vertical Situation Display (VSD) - General Background
1 MCP Selected Altitude Readout
Displays the altitude set in the MCP altitude window.
2 Selected Altitude Bug
Indicates the altitude set in the MCP altitude window.
When the selected altitude is off scale, the bug is parked at the top or bottom, with
only one half the bug visible. The dashed line does not park.
3 BARO Minimums Pointer
Indicates the barometric minimums selected on the EFIS control panel:
• pointer and dashed line turn amber when airplane descends below
selected minimum altitude
• reset with the RST switch on the EFIS control panel.
After the pointer is set with the BARO position, moving the Minimums Reference
selector to RADIO displays only the pointer.
4 Waypoint ID and Anchor Line
Displayed with any altitude constraint directly beneath. Dashed vertical line
depicts lateral position.
5 Altitude Constraint Symbol
Displayed as triangle(s) on waypoint anchor line.
8000
0
2200
NOLLA
2200
CF13R RW13R
50
0 10 20
4000
September 15, 2016
