10. Plug the GU filling tool into the Urinary port (colored yellow) located on the torso baffle
inside the manikin

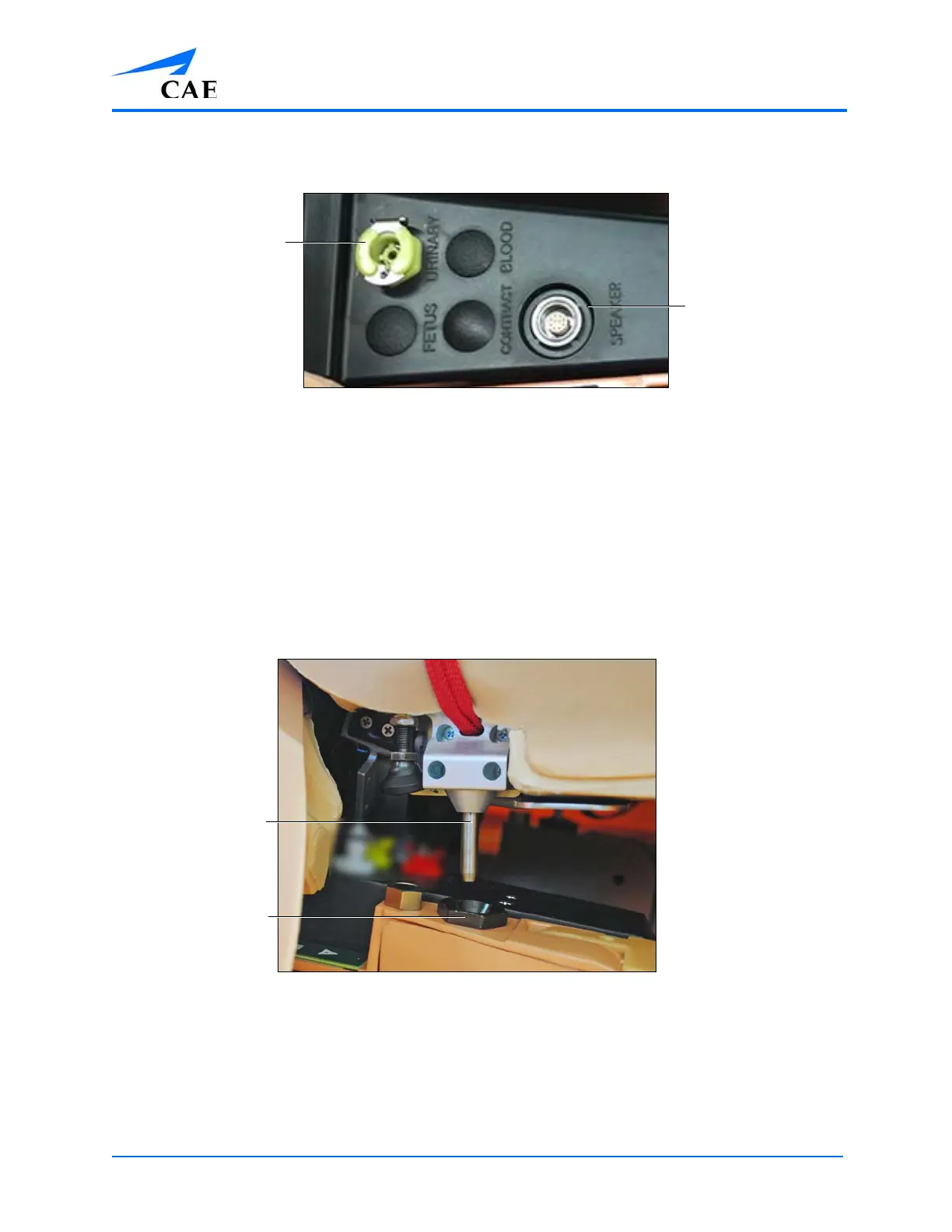

The Urinary Port
11. Slowly push in the distilled water until fluid drains into the overflow reservoir on the GU
filling tool (approximately 70 mL +/- 10 mL)
12. Disconnect the GU filling tool from the Urinary port
13. Store the GU filling tool in a secure location for future use
14. Ensure the speaker cable is plugged into the corresponding connection inside the
manikin’s torso
15. Latch the abdomen shell into the manikin’s torso and ensure the speaker cable is not
pinched or constricted
The Abdomen Placement
IMPORTANT: Ensure the abdomen is properly installed and latched during all simulations.
Note: Do not remove or modify the black port plugs.
For more information on draining and cleaning the GU system, see Cleaning the
Genitourinary System in the Care and Maintenance section.
The Urinary port
The Speaker
connection
The abdomen
latch post
The manikin torso
hole
