Chery QQ - Disassembly of Tension Pulley; Disassembly of Timing Belt; Disassembly of Crankshaft Timing Gear

Chery QQ Service Manual Mechanical Part of SQR 472Engine
9

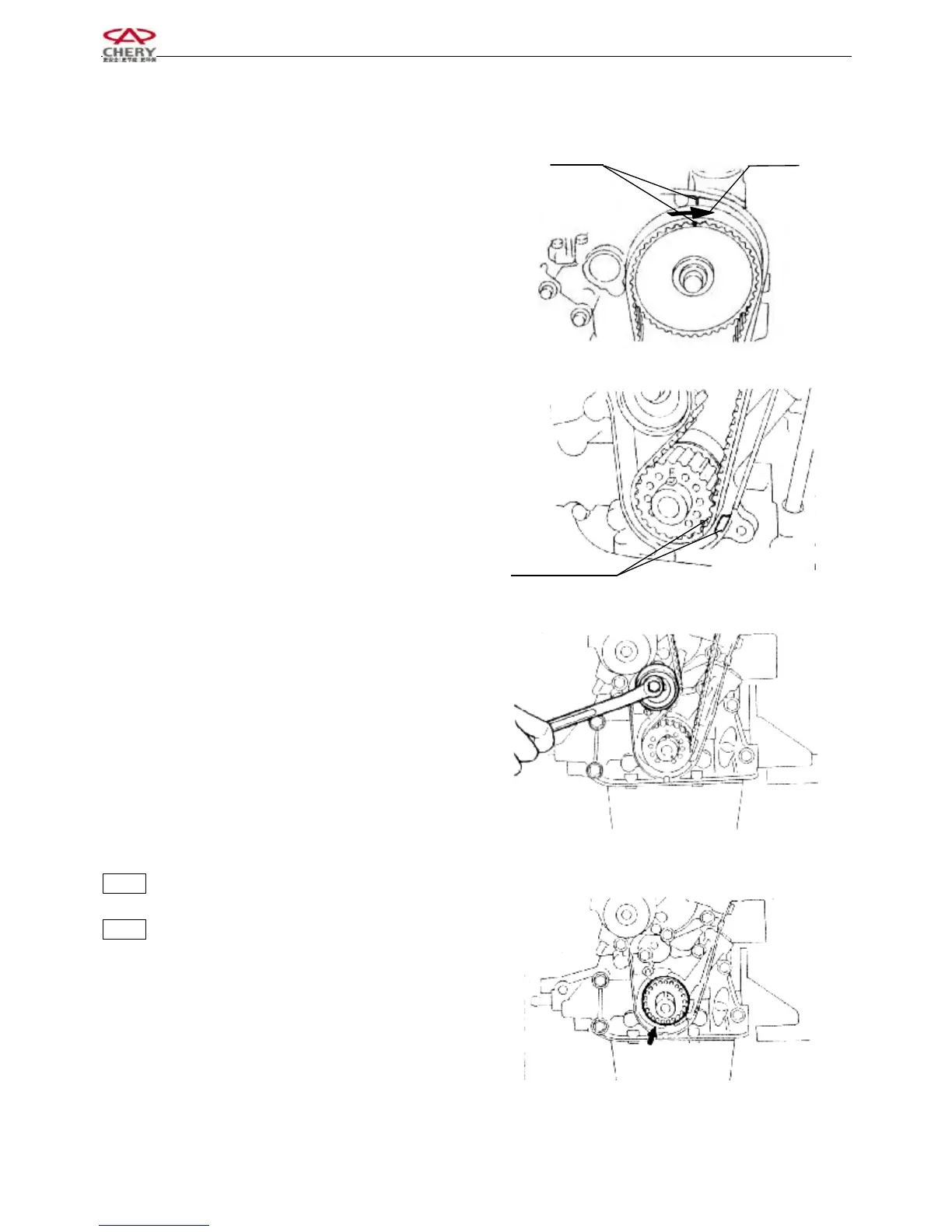

2.5 Disassembly of tension pulley
2.5.1 Compress the top dead center at the first cylinder
piston. After disassembly of timing cover, pull the
bolt and clockwise rotate the timing gear with
wrench. And then align the timing mark of camshaft
timing gear and the raised mark on camshaft cover;
2.5.2 Screw off the bolt of tension pulley and remove the
tension pulley.
2.6 Disassembly of timing belt
Notice: Do not use sharp tools like screwdriver during
disassembly of belt.
Notice: Pay attention to the following items during using
the timing belt:
l Do not bend the belt with small angle, or the rigging in
belt will break.
l Do not pollute grease and water because the using
expectancy of belt is short.
l Only clockwise rotate the engine after mounting the
belt.
2.7 Disassembly of crankshaft timing gear
Timing Mark
Timing Mark
Clockwise
