4.4.3 When the outer gear or inner gear is put into the
engine oil pump, its mark should be seen.
4.4.4 The new weather strip should be fixed in the
groove of oil pump cover.
5. Disassembly of Oil Seal

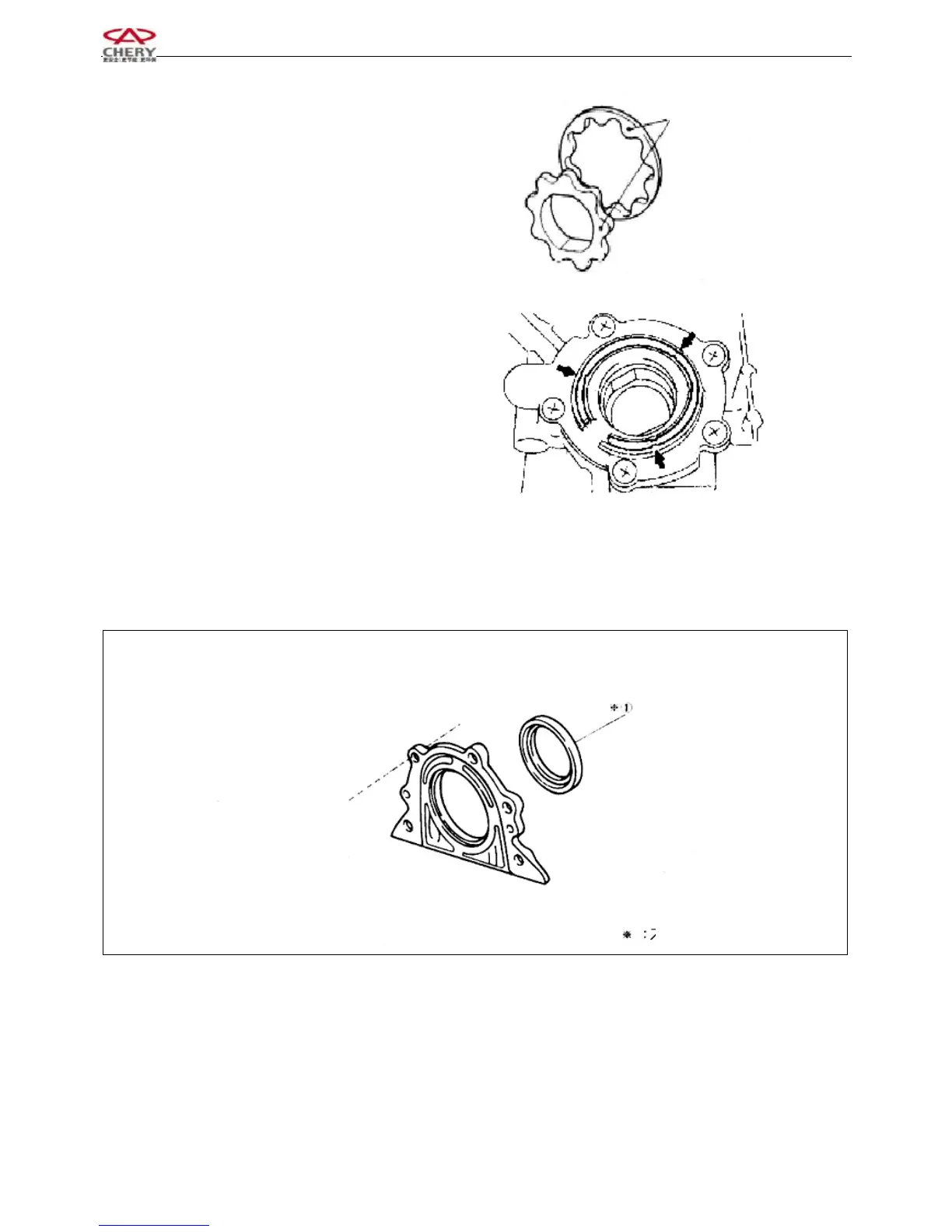

5.1 Structure Diagram
Mark
Components which
may not be reused
