Sun-roof adjustment
1.Remove sun-roof ornaments
Sun-roof ornaments on left and right
sides must be firstly removed
before adjustment
Note：The ornaments will be repositioned
after adjustment
2. Upper and lower position adjustment
Tighten or Loosen bolts with torque screw
driver to regulate vertical separation
Clearance：0±2.0 mm （0±0.079 in）
3. Front and back side adjustment
Loosen the fixing nuts on sun-roof
and shift sun-roof bracket forward and
backward to adjust

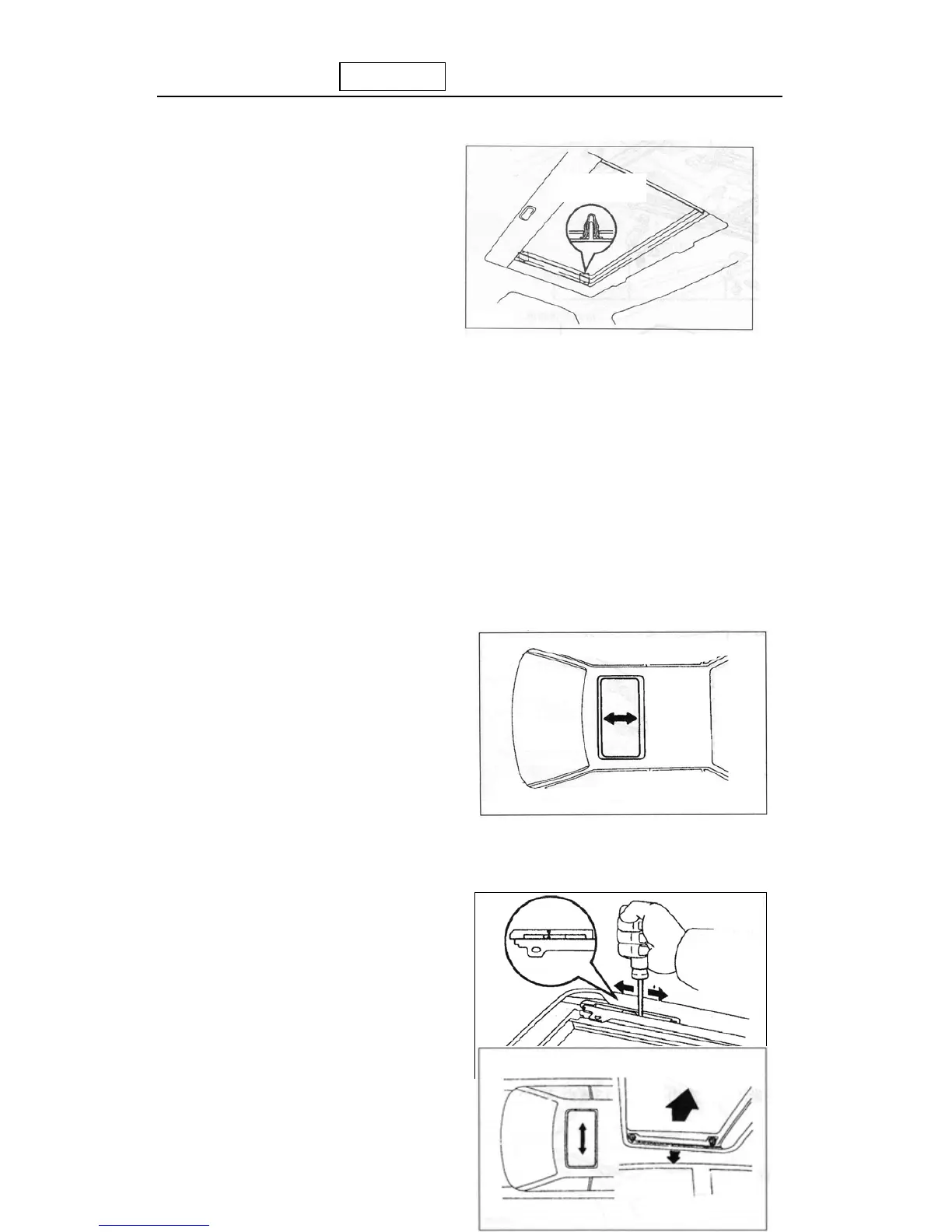

As showed in the drawing：
Make link rod slide forward and
backward to align two marks
Slide by hand bracket to front
terminal
two fasteners
