CHERY SQR7080 EZ Drive SERVICE MANUAL
MECHANICAL TRANSMISSION – GEARSHIFT LEVER

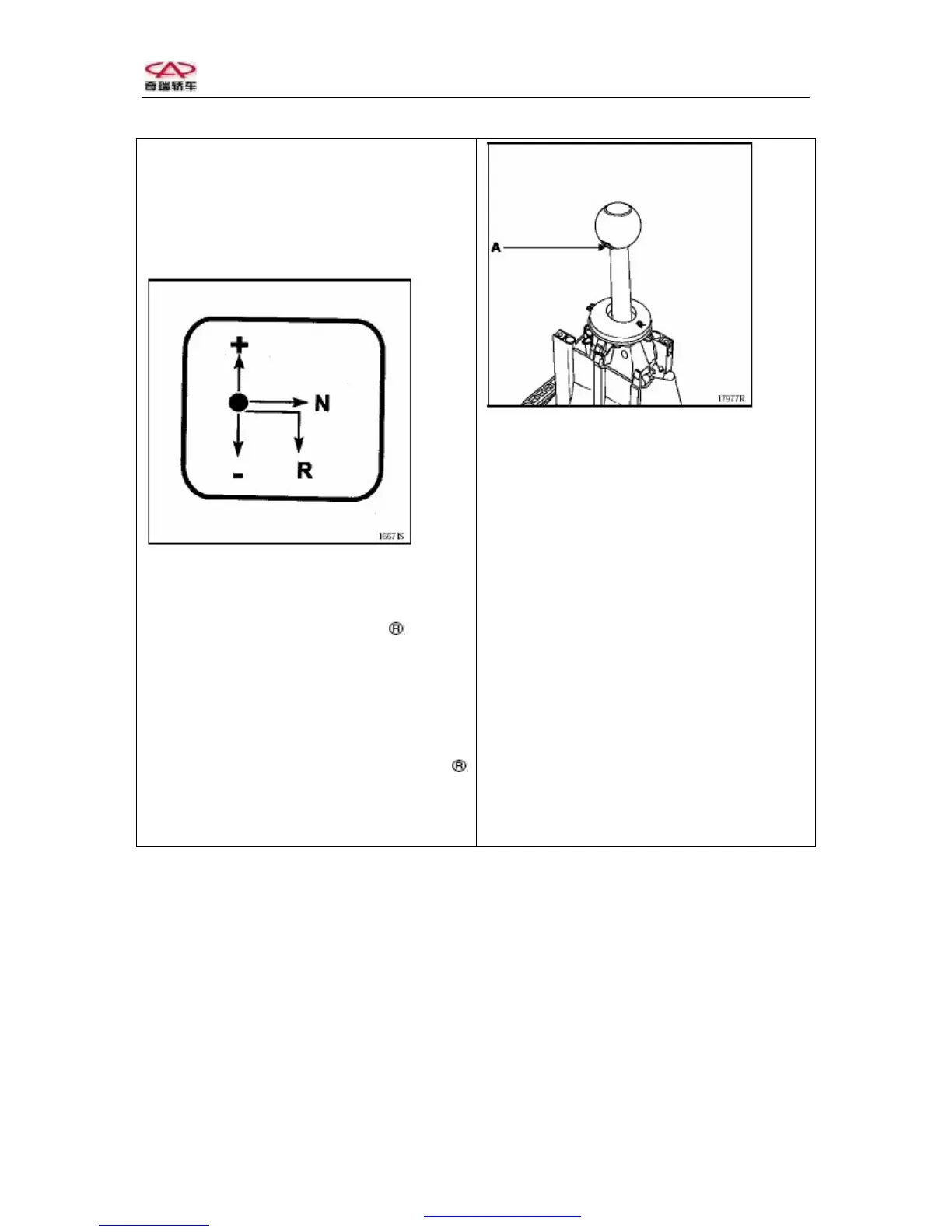

Method of application:
For control lever type gearshift, there is only one
stable position.
Any operation of the gearshift lever from this
position will produce a pulse, which is also called
“signal”.
– Forwards (+): to high drive ratio
– Backwards (-): to low drive ratio
– Rightwards (N): to the neutral position
– Rightwards and backwards : to the
reverse gear
The button “A” is used to activate or inactivate the
automatic mode depending on what the driver
needs.
The display in the center of the instrument board
indicates the actual drive ratio in use. The letter
on the base frame of the gearshift lever is used to
indicate that changing to this position will change to
the reverse gear.
Operation:
Its control of the automated mechanical
transmission is an electric control.
Gearshift lever position is converted into electric
signal through the connector located at the bottom
of the control module and then sent to the
transmission computer.
