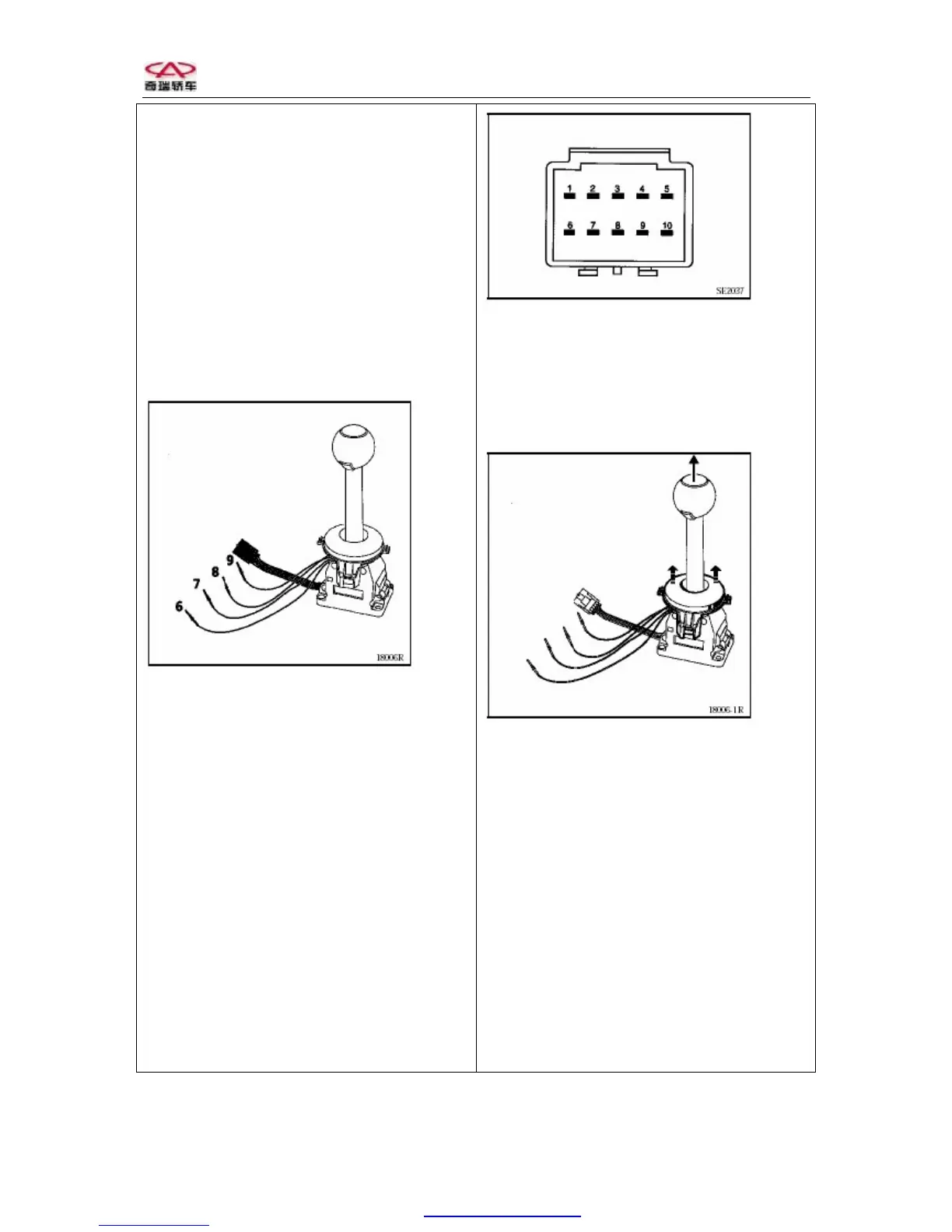

Removal:
Disconnect the battery.
Remove:
– Gearshift lever base frame dust boot
– Transmission base
Disconnect electric connection of the gearshift lever.
Take out the following two electric wires of the
gearshift lever's electric connector:
Line 8 – power wire for the automatic operation
button
Line 9 – power wire for the serial operation button
On the main shaft of the connector, line distribution
(10 lines) is as follows:
Line 1: control lever mechanism
Line 2: information of changing to high drive ratio
Line 3: information of changing to low drive ratio
Line 4: stable position information (spare)
Line 5: information of changing to the neutral
position
Line 6: whole module
Line 7: information of changing to the reverse gear
Line 8: whole module
Line 9: information of changing to the automatic
mode
Line 10: no connection
Undo the circlip that surrounds the gearshift lever
base washer.
Remove the ball ring on the top of the gearshift
lever by applying an upward force on it, as shown in
the arrow.
Remove the four fixing bolts for gearshift lever base
from its mounting base.
Replace any worn parts.
Reassembly:
It is easy to carry out the reassembly procedure,
which is opposite to the disassembly procedure.
