Chery QQ - Distance Dimension between Two Points of Every Part

Chery QQ Service Manual Body System

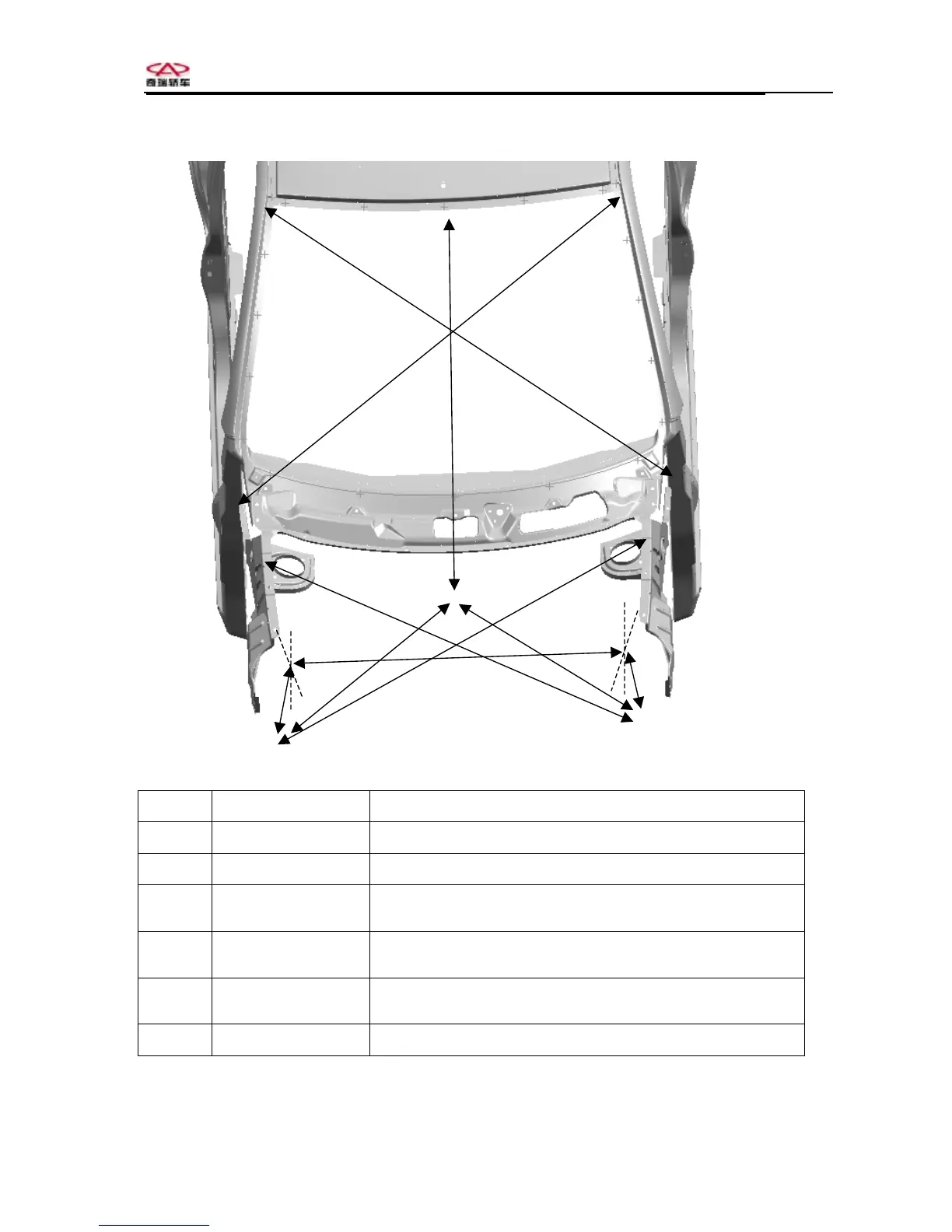

2.5.2.5 Distance dimension between two points of every part
A
J
L
F
I
H
E
D
G
B
C
K
No. Control dimension Remark
AC 1326.7±1.5 Front windshield diagonal
EF 908.8±1 Front windshield YO position distance
KI 345.7±1 Center distance between front shock absorber and front
wheel housing outside panel front end port
KF 622.2±1 Center distance of front cover upper member body center
pit and front wheel housing outside panel front end port
KH 1206.0±1.5 Diagonal distance from front cover upper member body
port and front wheel housing outside panel front end port
IJ 971.6±1.5 Center distance of Left/Right front shock absorber port
Note： AC=BD KI=LJ KF=LF DH=LG
- 38-
Chery Automobile Co., Ltd
