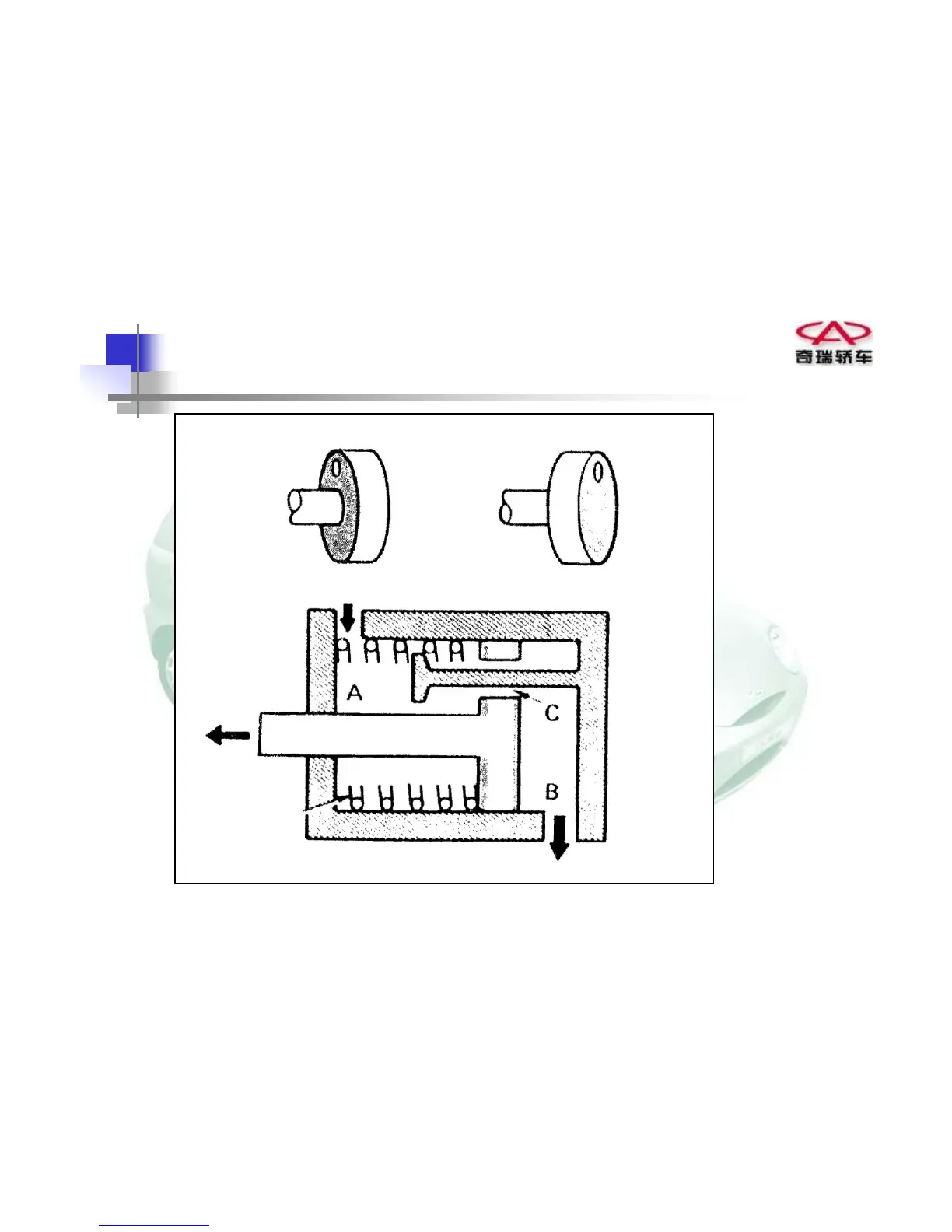

Working Principle of Proportioning Valve
— When the Pressure is Low
Spring
Piston
Chamber A side
Chamber B side
Piston
Small area
Large area
F
a
+F
s
=F
b
