Section Three Rear Suspension Frame
Rear Suspension service
I . Rear Suspension parts

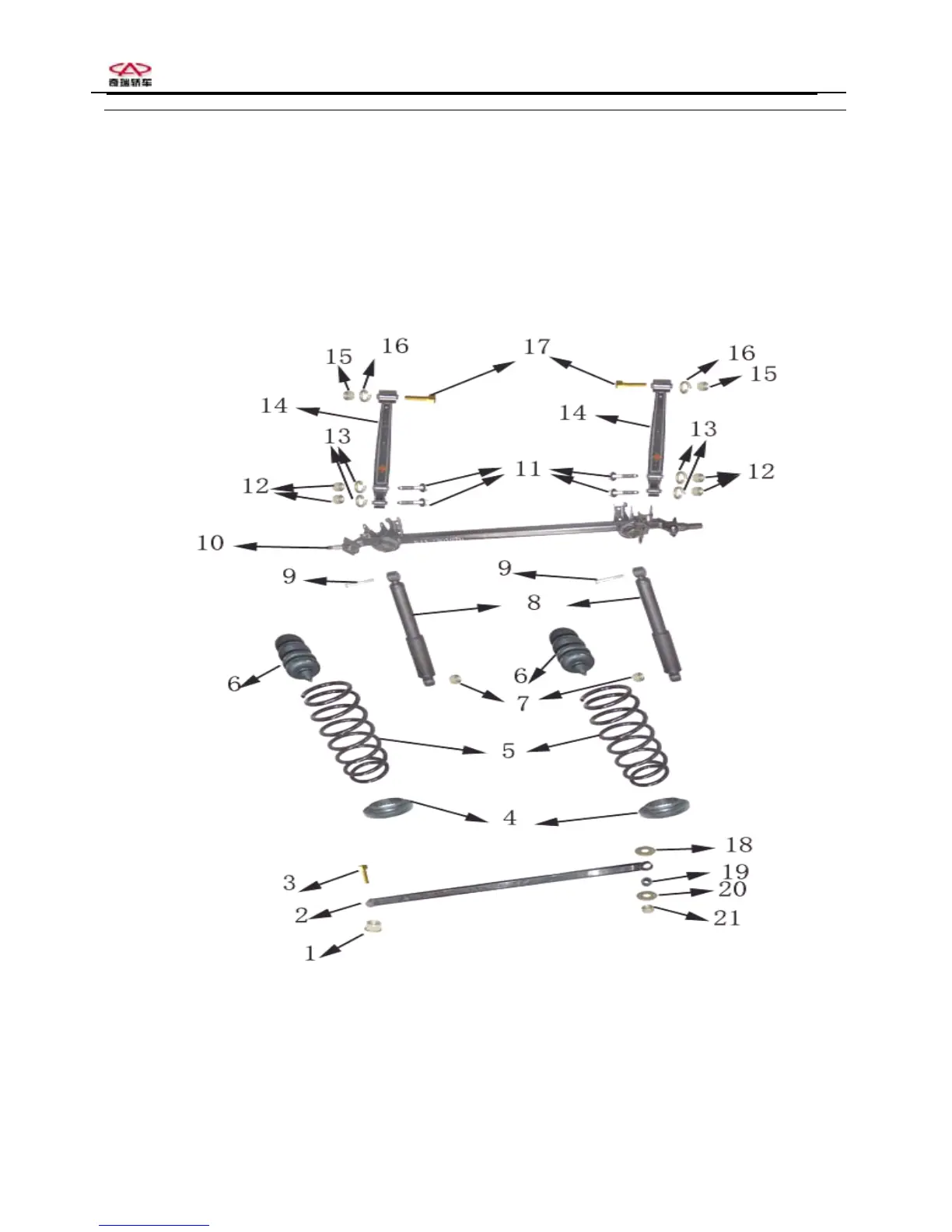

1. 7. 12. 15. 21. Screw nuts; 2. Horizontal stabilizing bar; 3. 9. 11. 17. Bolts; 4. Lower supporting
stand; 5. Spiral spring; 6. Spacing block; 8. Dampener; 10. Rear bridge; 13.16. Spiral washer; 14. Left
and right swinging arm; 18.20 Washers; 19 Sleeve
