CHERY SQR7080 EZ Drive SERVICE MANUAL
MECHANICAL TRANSMISSION – FUSE

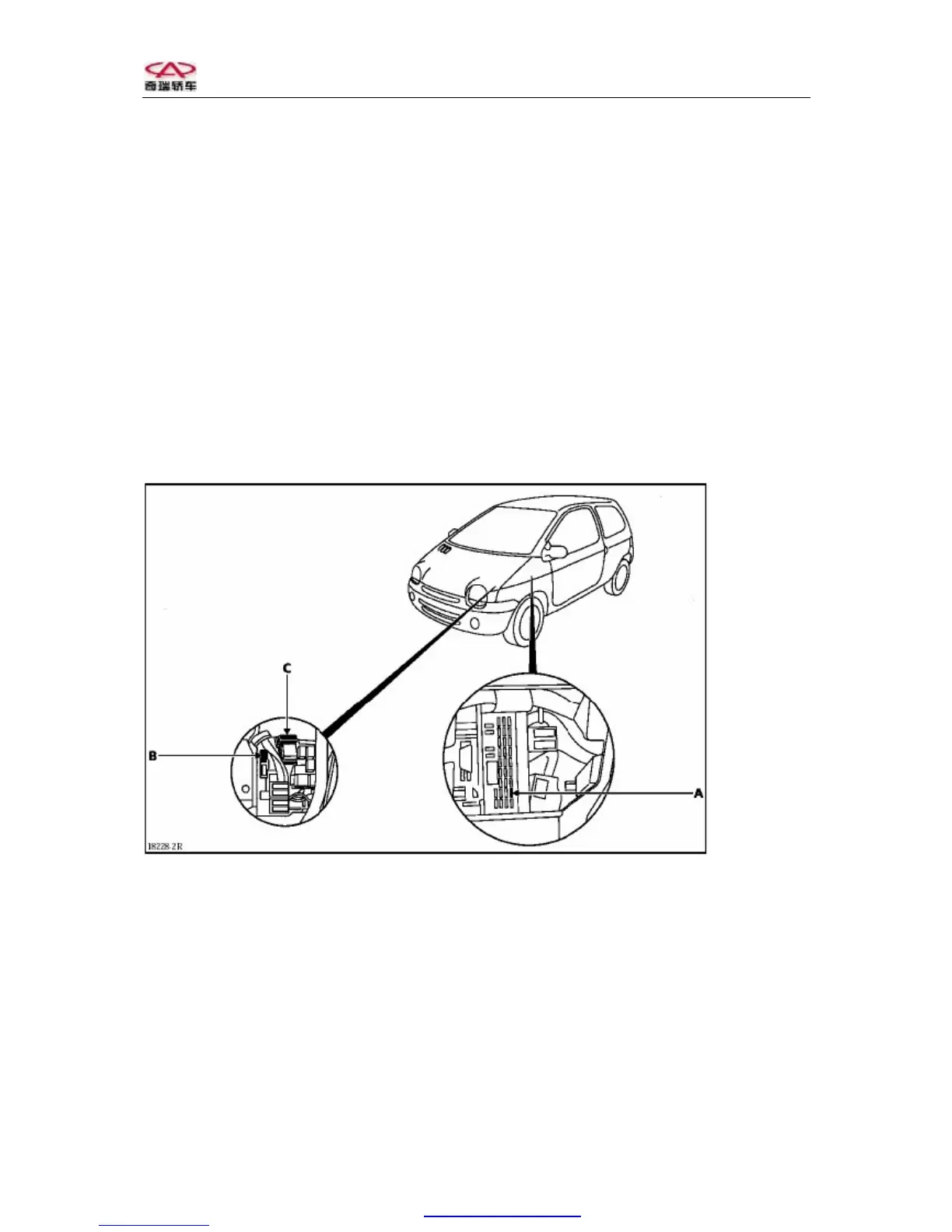

Position:
The system employs three fuses for power supply:
n 3A fuse (A) on the ignition switch's positive pole (+), located on the fuse side panel of driver
compartment, connected to the main shaft 28 of the transmission computer connector.
n 20A fuse (B) on the battery's positive pole (+) within the interconnection box in the engine
compartment, connected to the main shaft 27 of the transmission computer connector.
n 30A fuse (C) on the battery's positive pole (+) within the interconnection box in the engine
compartment, used to supply the electric pump set with power.
Removal and Installation:
Before maintaining the system, you shall turn off the engine and cut off the battery.
