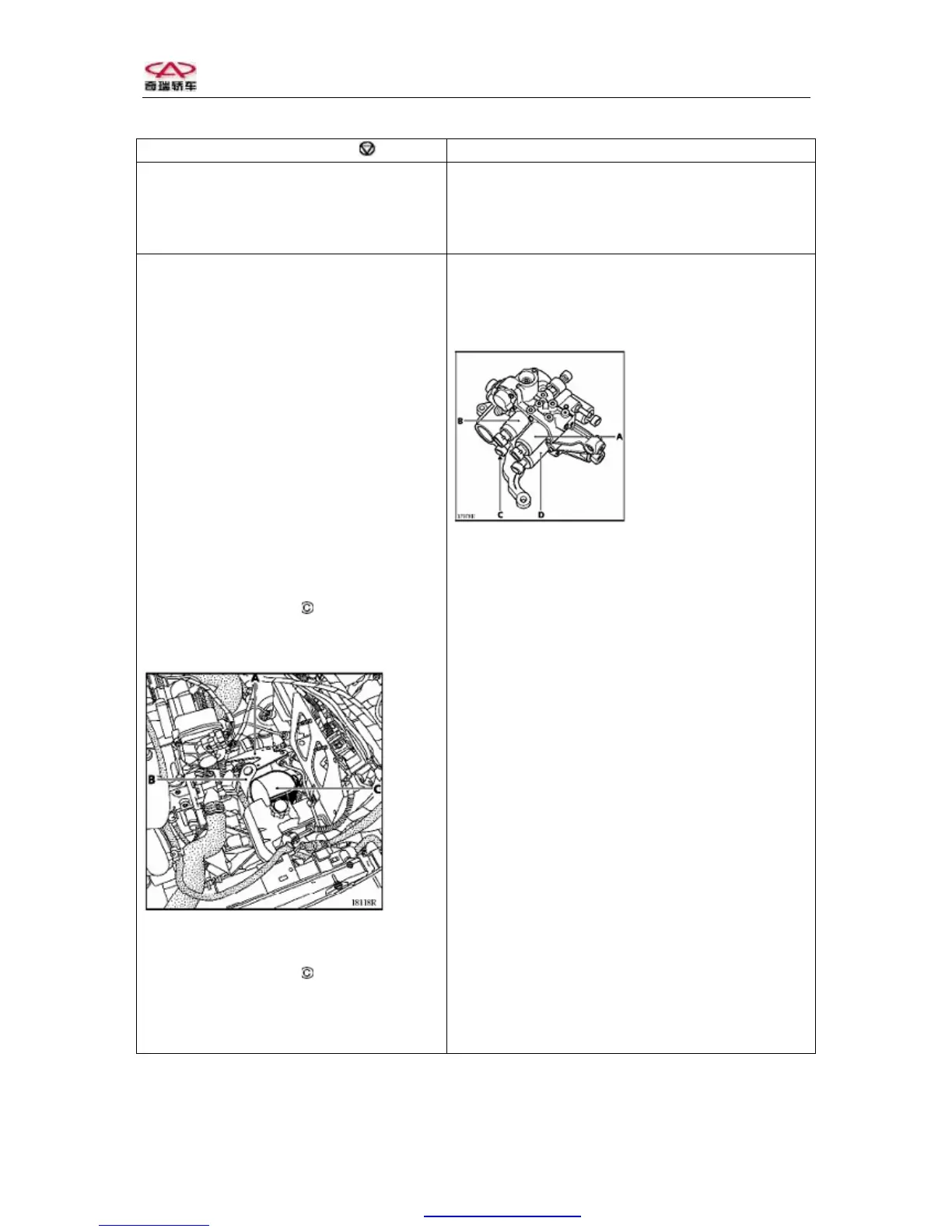

CHERY SQR7080 EZ Drive SERVICE MANUAL
MECHANICAL TRANSMISSION – ELECTROMAGNETIC VALVE
Tightening torque (unit: DAN.M)
Energy storage 4
High-pressure pipeline coupler 1.4
Lifting ring fixing nut 2.1
Electromagnetic valve bolt 0.4
Remarks:
Before maintaining the entire automated
mechanical transmission, use a special repair
tool to remove the energy storage (refer to
the section of "ENERGY STORAGE").
Please refer to the related information in 21- 4.
Disconnect:
– Battery
– Hydraulic unit wire harness
connectors
Remove:
– Air casing
– Air casing support
– Computer
– Transmission housing support
– Energy storage
– Hydraulic unit wire harness connector
support (A)
Remove:
– Lifting ring (B) mounting support
– Energy storage
Disconnect the related connections for electromagnetic
valves.
Remove related electromagnetic valves according to the
following removal sequence.
A: Electromagnetic valve (for the clutch)
B: Electromagnetic valve 4 (for gear position selection)
C: Electromagnetic valve 3 (for gear position selection)
D: Electromagnetic valve 1 (for gear engagement)
Remounting:
Carry out the remounting procedure that is opposite to
the removal procedure.
Fill the ELF RENAULT MATIC D3 SYN DEXRON oil
to the degree that the oil level is 32 to 38 mm higher than
the lowest mark line.
Perform the corresponding test by using a special tool.
(Refer to the page 21-36 of section “special requirements
on change of system parts and components of KIT
electrically controlled hydraulic system”)
Oil filling into oil tank
The mark shown on the oil tank is the lowest standard.
Carry out the energy storage removal procedure. Make
sure that the oil level is 32 to 38 mm higher than the
lowest mark line.
Important tip:
The oil level will be at the position indicated by the mark
line (MIN) when the energy storage has been fully
inflated (15 seconds after ignition).
