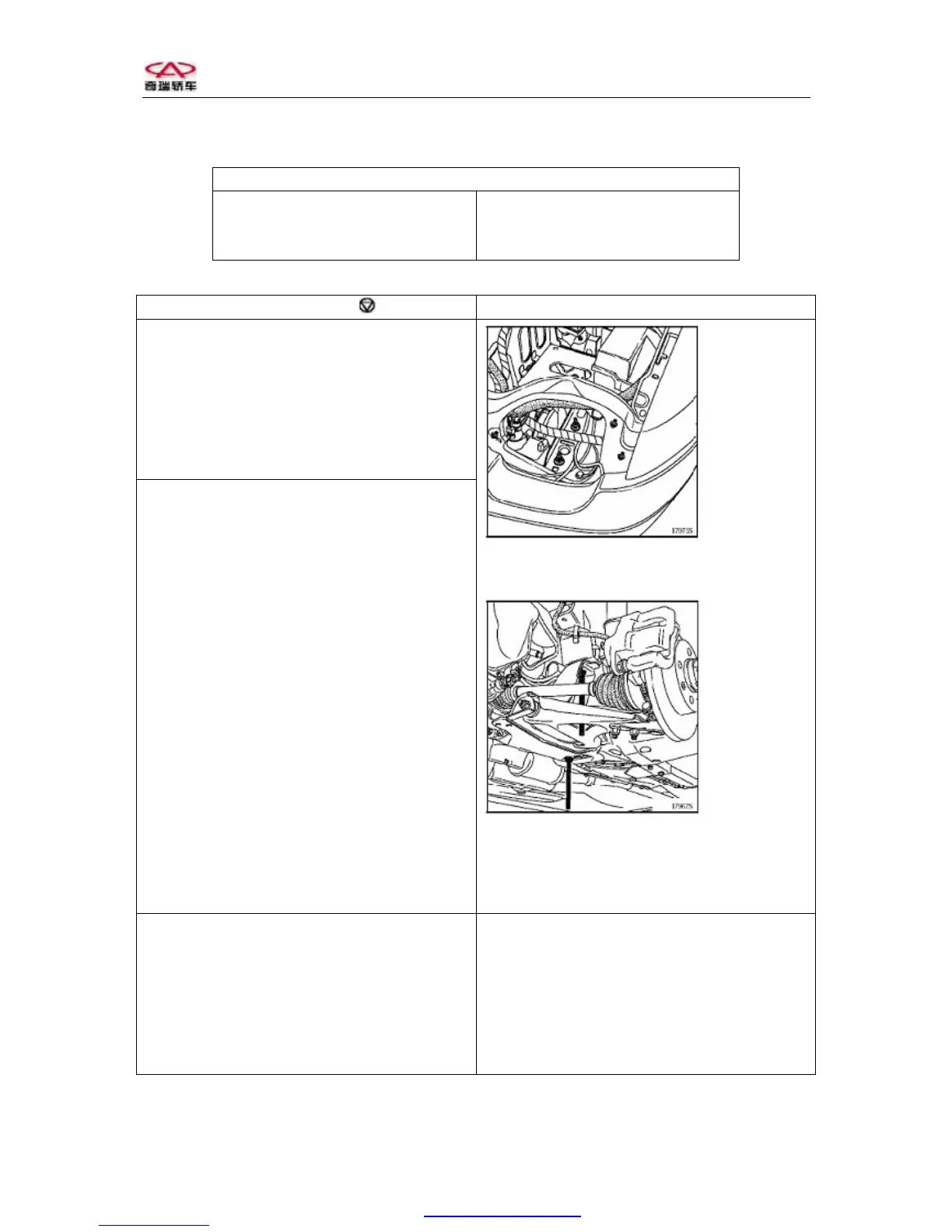

CHERY SQR7080 EZ Drive SERVICE MANUAL
CONTROL OF MACHINE PARTS – SERVO BRAKE
Indispensable special tools
ELE 1294-01
MOT. 1453
2* TAV. 1233-01
Glass cleaning tool
Engine bracket
Seat frame tool
Tightening torque (unit: DAN.M)
M10×100 1.3
Main cylinder bolt 1.5
Servo brake bolt 2
Housing bracket bolt 4.5
Seat frame bolt 6.5
Nut for upper glass cleaning 1.6
Nut for lower glass cleaning 1.2
Servo brake cannot be repaired and you can only
maintain the following parts:
n Air filter
n Check valve
Disconnect the battery.
Reassembly:
Remove the main cylinder. See the disassembly
procedure described on the previous page.
Use the tool ELE. 1294-01 to remove two fixing
bolts for glass cleaning.
Disassembly:
n Air inlet DURIT
n Three fixing bolts for glass cleaning
engine
n Glass cleaning engine
n Check valve on the servo brake
n Left front mirror
Keep the MOT.1453 bracket bolts in place.
Disassembly the housing bracket bolts.
Put the two AV. 1233-01 tools that have the same
diameter of 8MM.
Disassembly:
– Remove the clip and then the bracket shaft
connecting footbrake and pushrod.
Gradually lower the mechanical power set and its
seat frame so as for the servo brake to be taken off.
Assembly:
Carry out the reassembly procedure, which is
opposite to the removal procedure.
Before reassembly, you shall check:
Size, L = 94.5MM
