4) Water Pump

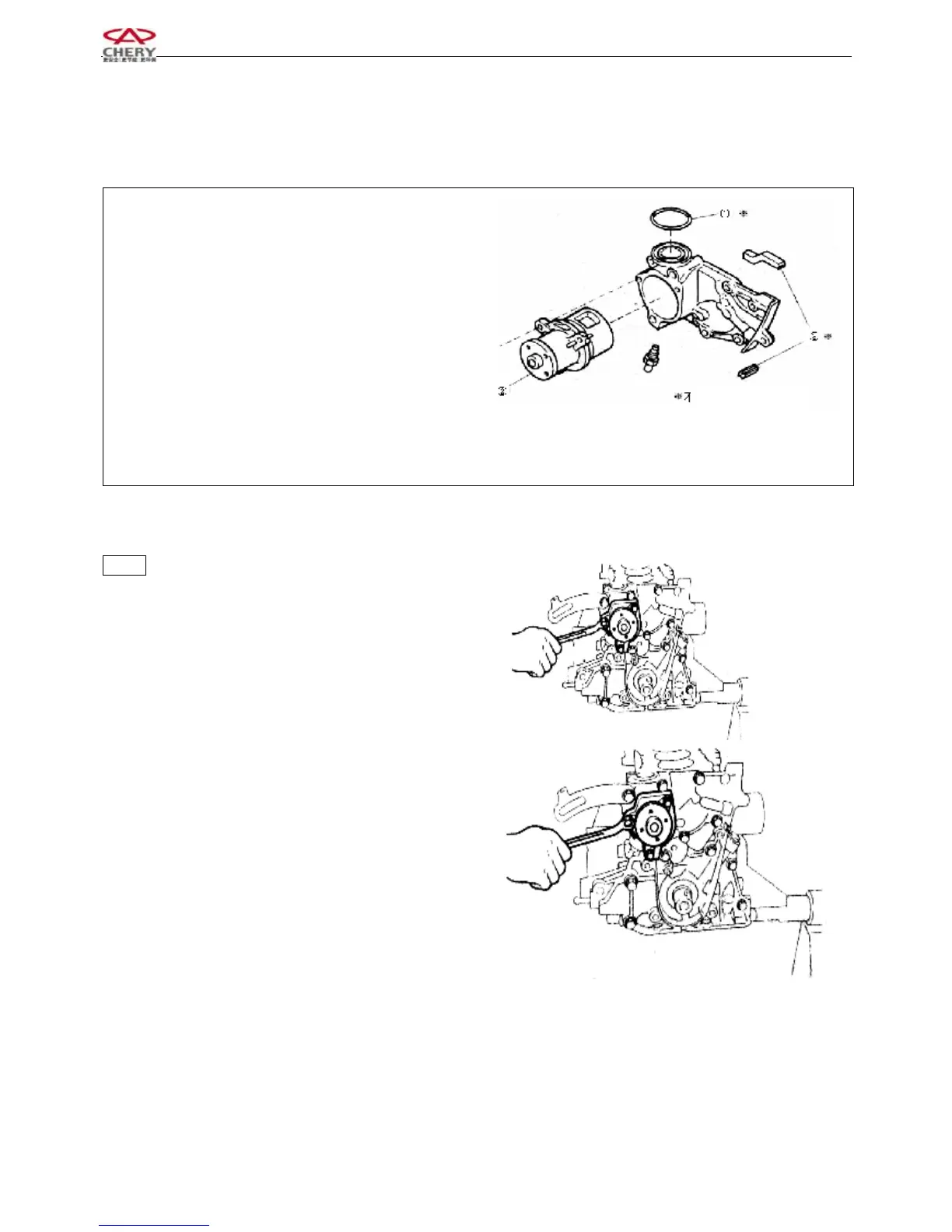

1. Structure Diagram
① O-ring (nonreusable)
② Water pump body
③ Dust seal
2. Disassembly
2.1.○1 Disassembly O-ring
Notice: The O-ring is nonreusable.
2.2 Screw off 3 bolts and disassemble water pump body.
2.3. Disassembly of dust seal
3. Cleanup
3.1 Clean water pump joint surface.
4. Routine Inspection
4.1 Check if it is deformed.
4.2 Rotate it with hand and inspect whether the rotor
rotates and is lubricated well.
5 Assembly
5.1 Mount Dust seal.
5.2 Mount Water Pump Body; torque: 25±1.5N.m.
5.3 Mount The New O-ring.
Components which
may not be reused
