2. Inspection and Repair of wiper and wash equipment
（1）Removal of Wiping rubber Strip
①Hold the two steel straps on the sealed side of wiping rubber strip with slip-joint
pliers, remove them from the upper clamp and draw the rubber strip together with the
steel straps from the other clamps of wiper blade.
②Insert new wiper rubber strip in the lower clamp of the wiper blade and fasten it.
③Insert the two steel straps into the groove of the first wiper rubber strip, align them
with the rubber strip and push them below the rubber strip lips in the groove.
④Press the steel straps together with the rubber strip, mount the upper clump by
putting the lips on the both side of the clamp in the positioning groove of the wiping
rubber strip.
（2）Adjustment of the position of crankshaft
①Turn the wiper motor to the limit position.
②Install the crankshaft and adjust it until the tubular internal thread can be seen.

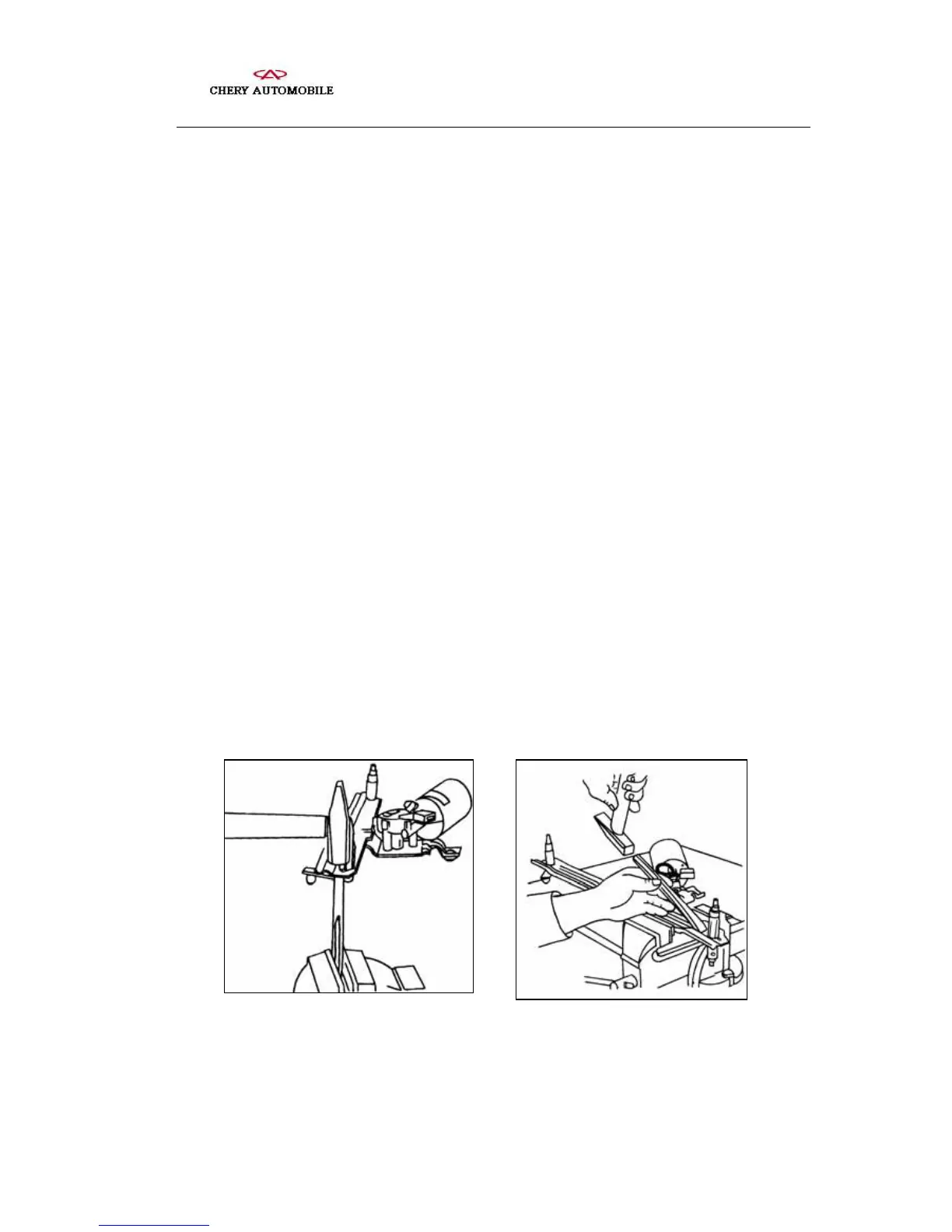

（3）Replacing the wiper abutment
Once the wiper abutment is removed, it should be replaced. During the removing of the
wiper abutment, the rivet should be cut off with cutting knife. As shown in the figure,
while installing the wiper abutment, the abutment should be abutmented securely.
Removal of the wiper abutment
- 103 -
