3) Special Maintenance Tools:

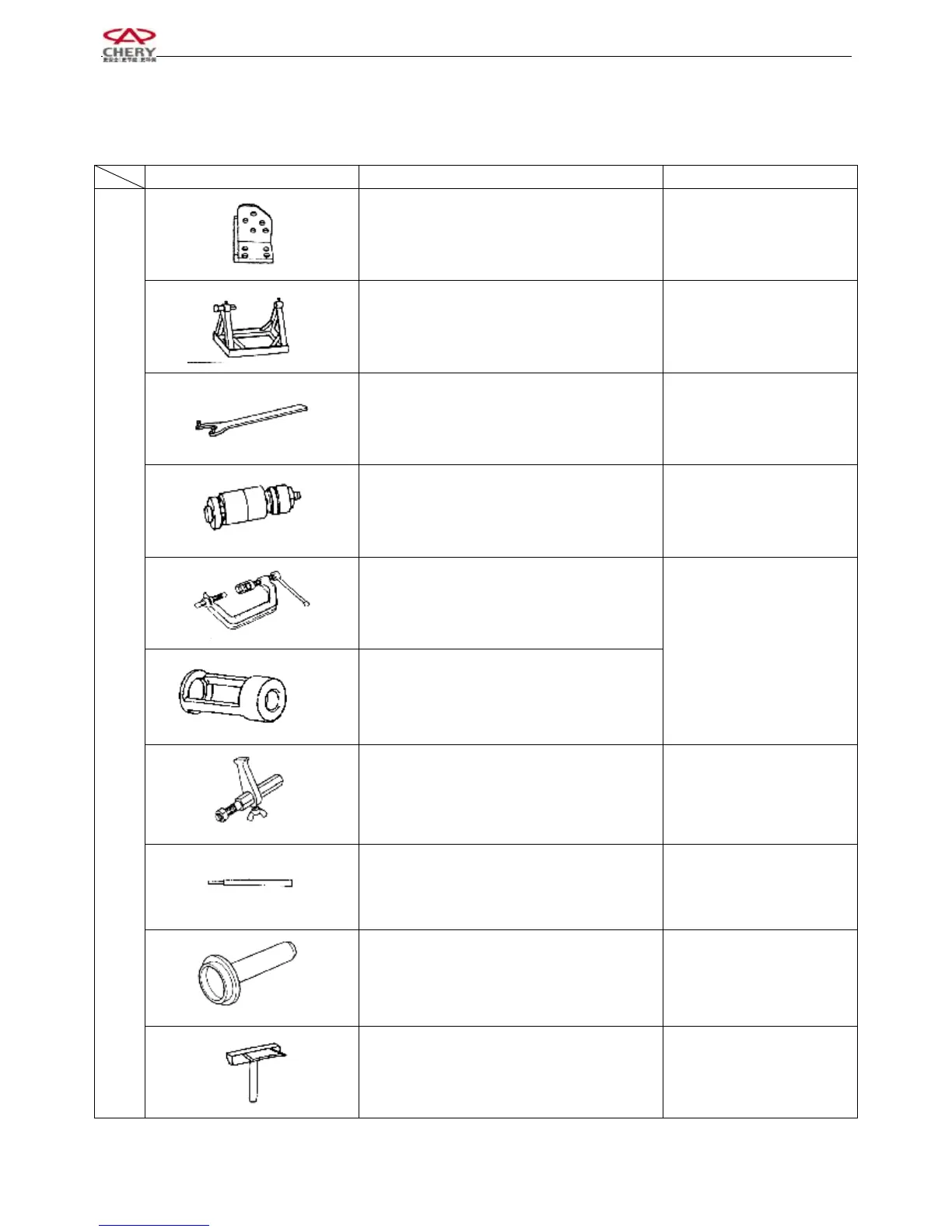

Outside view Name or symbol Purpose
Engine disassembly and inspection auxiliary
device
Mount on the engine service
stand
Engine service stand
Disassembly and assembly
of engine
Clamp hole wrench for camshaft timing gears
Disassembly of camshaft
timing gears
Spring bushing puller
Assembly of camshaft Oil
seal
Valve keeper remove tool
Auxiliary tools
Assembly and disassembly
of valve spring retainer lock
Flywheel clamp
Assembly and disassembly
of crankshaft gear
Valve guide punch pin
Disassembly and assembly
of Valve guide
Axial Oil seal replacing device
Oil seal base drive
