Chery QQ - Place the Wheel Positioning Device or the Positioning Tester on the Wheel; Front Wheel Positioning; Measure the Car Height

Chery QQ Service Manual Chassis System
Attention: Before testing and checking the wheel positioning, the car should be first
adjusted to the specified height.
If the car height does not meet the specification, check the front and rear suspension
systems of the car to see if there are any damages or deformations.

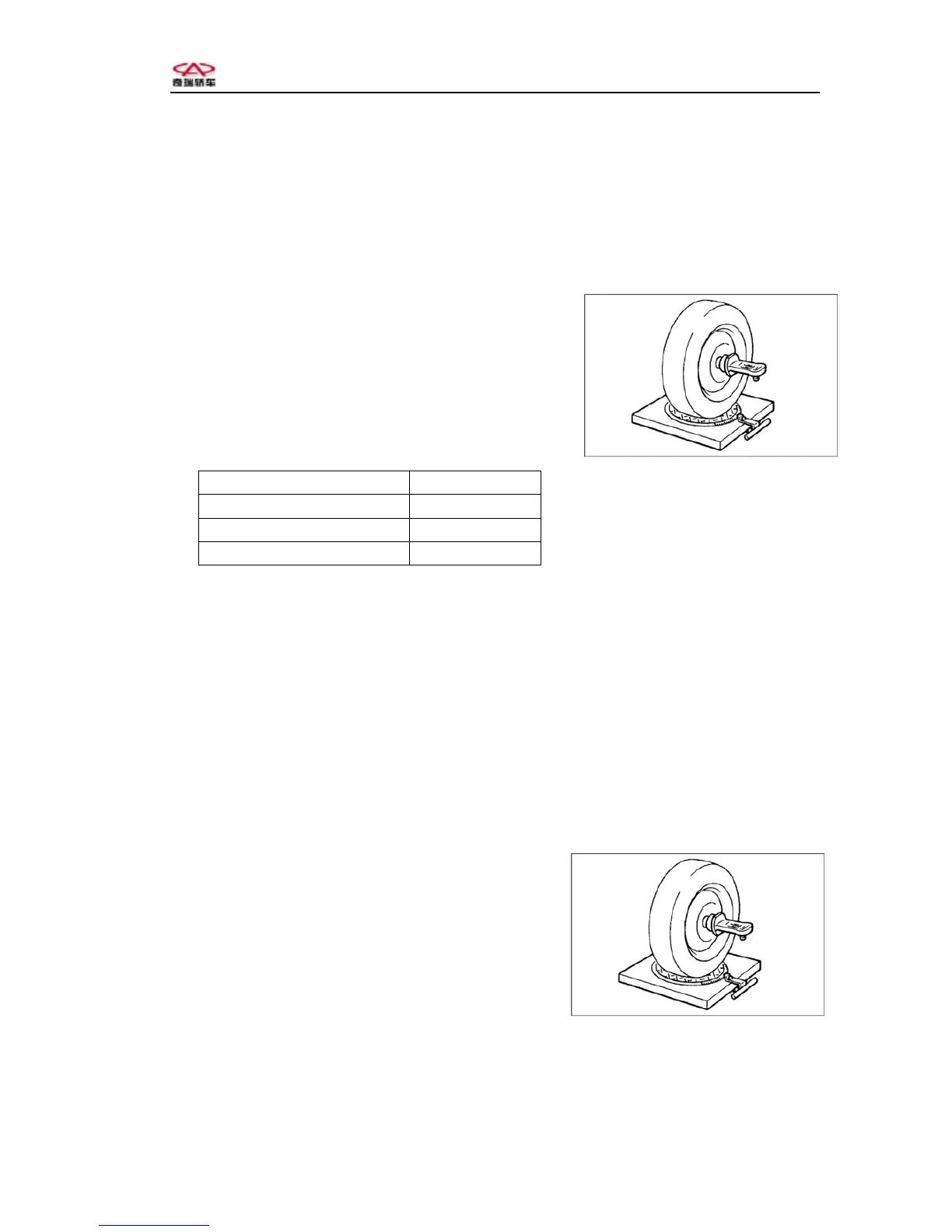

II. Place the wheel positioning device or the positioning tester on the
wheel
1、 Install the instruments in the way as specified by the
manufacturer of the devices;
2、 Make tests and adjustments on the car as required by
the equipment. The specifications for the positioning are
as follows:
Rear wheel assembly toe-in 20
1
±40
1
Single rear wheel toe-in 10
1
±20
1
Rear wheel camber angle 0
1
±20
1
Thrust angle -13
1
~+10
1
Section Three: Front Wheel Positioning
I. Measure the car height
Do the measuring and adjustments in the same procedures as the ones for the car
height measurements for rear wheel positioning.
II. Place the wheel positioning device or the positioning tester on the
wheel
Install the instruments in the way as specified by the
manufacturer of the devices.
