4.3.1.3 Measure the clearance between the rotor and
pump body.
Standard value: 0.10-0.181mm
Limit: 0.25 mm
4.3.2 Inspect the oil pressure relief valve
4.3.2.1 No abrasion or scrape shall be found on the oil
pressure relief valve.
4.4 Installation

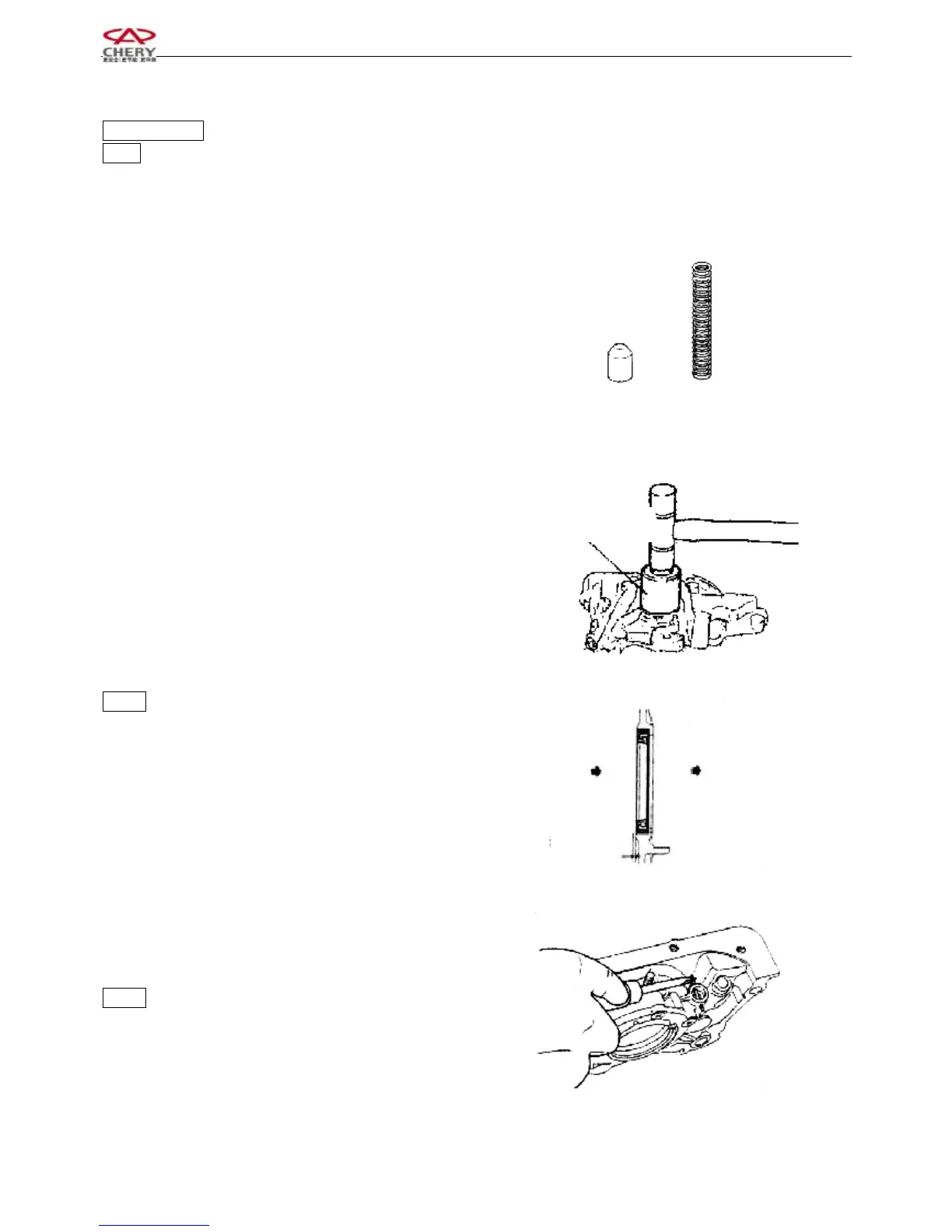

4.4.1 After the lip of the new oil seal for front crankshaft
is spread with engine oil, fix it with a special tool.
Notice: ·Use new oil seal
·The oil seal should be left less than 0.5 mm at its
outer edge after it is pressed down.
4.4.2 Assembly of the oil pressure relief valve for engine
oil pump and the cotter pin.
Notice: The cotter pin is nonreusable.
Special Tool
Pressed Direction
Inner Side
Oil Seal
Below 0.5mm
