Chery QQ Service Manual Mechanical Part of SQR 472Engine
31
5) Oil Pump

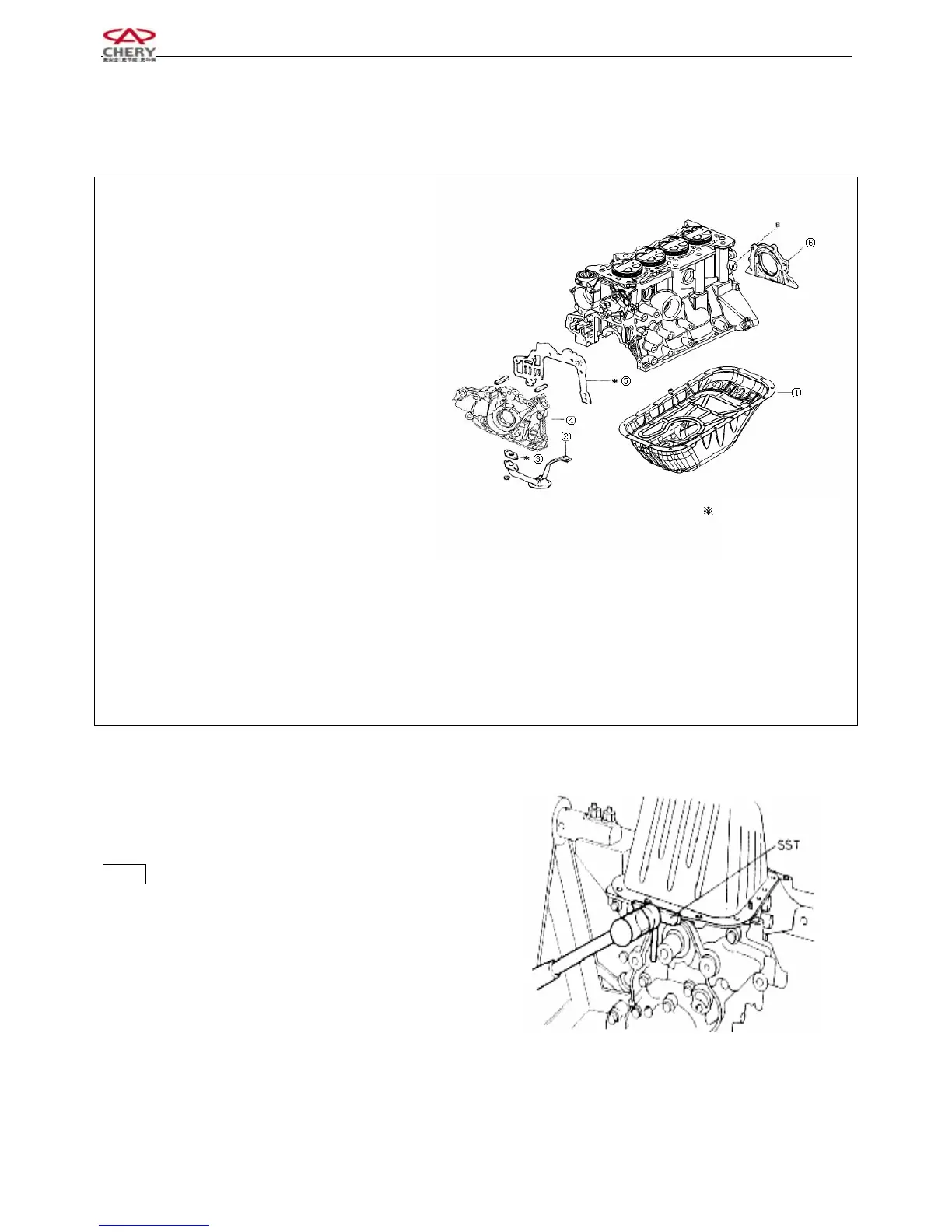

1. Structure Diagram
Torq① ue for oil pan bolt: 8±2 N.m
Oil collector②
Oil collector spacer (nonreusable)③
Oil pump④
Oil pump spacer (nonreusable)⑤
Rear oil seal bracket⑥
2 Disassembly
2.1 Screw off the bolts and nuts, and then remove the oil
pan from the cylinder body with special tool (The engine is
placed on the disassemble shelf upside down).
Notice: Don’t make the oil pan flange deform.
Components which
may not be reused
