Chapter 2. Disassembly, Assembly and Maintenance
Disassemble or assemble the engine with roll over stand.
Disassemble or assemble the engine parts on the roll over
stand.

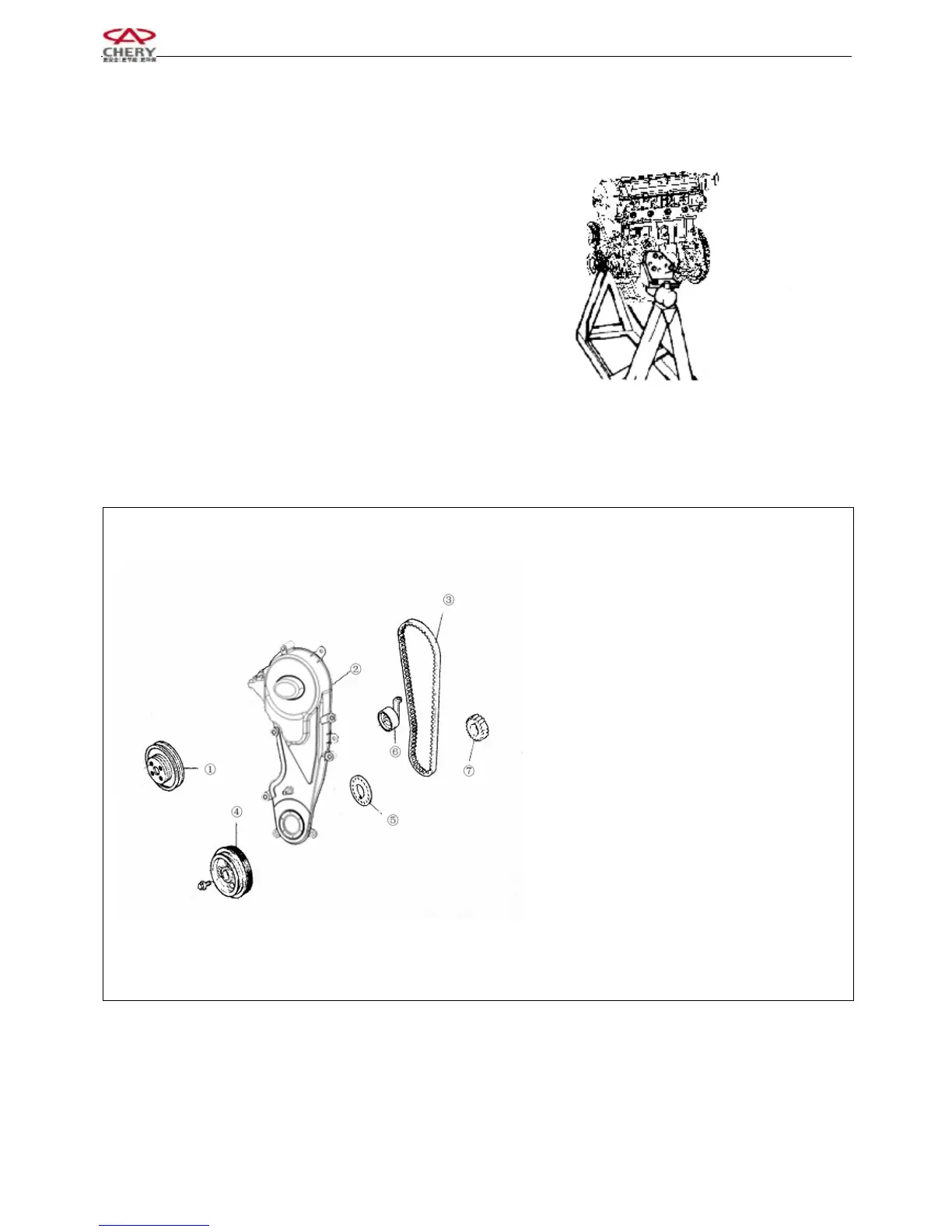

1) Timing Belt
1. Structure Diagram
① Water pump pulley
② Timing shroud
③ Timing belt
④ Torsional damper
⑤ Timing belt back plate
⑥ Tension pulley
⑦ Camshaft timing pulley
※: C omponents which may
not be reused.
Unit: N·m(kg·cm)
