Chery QQ Service Manual Chassis System
Chery Automobile Co., Ltd
86

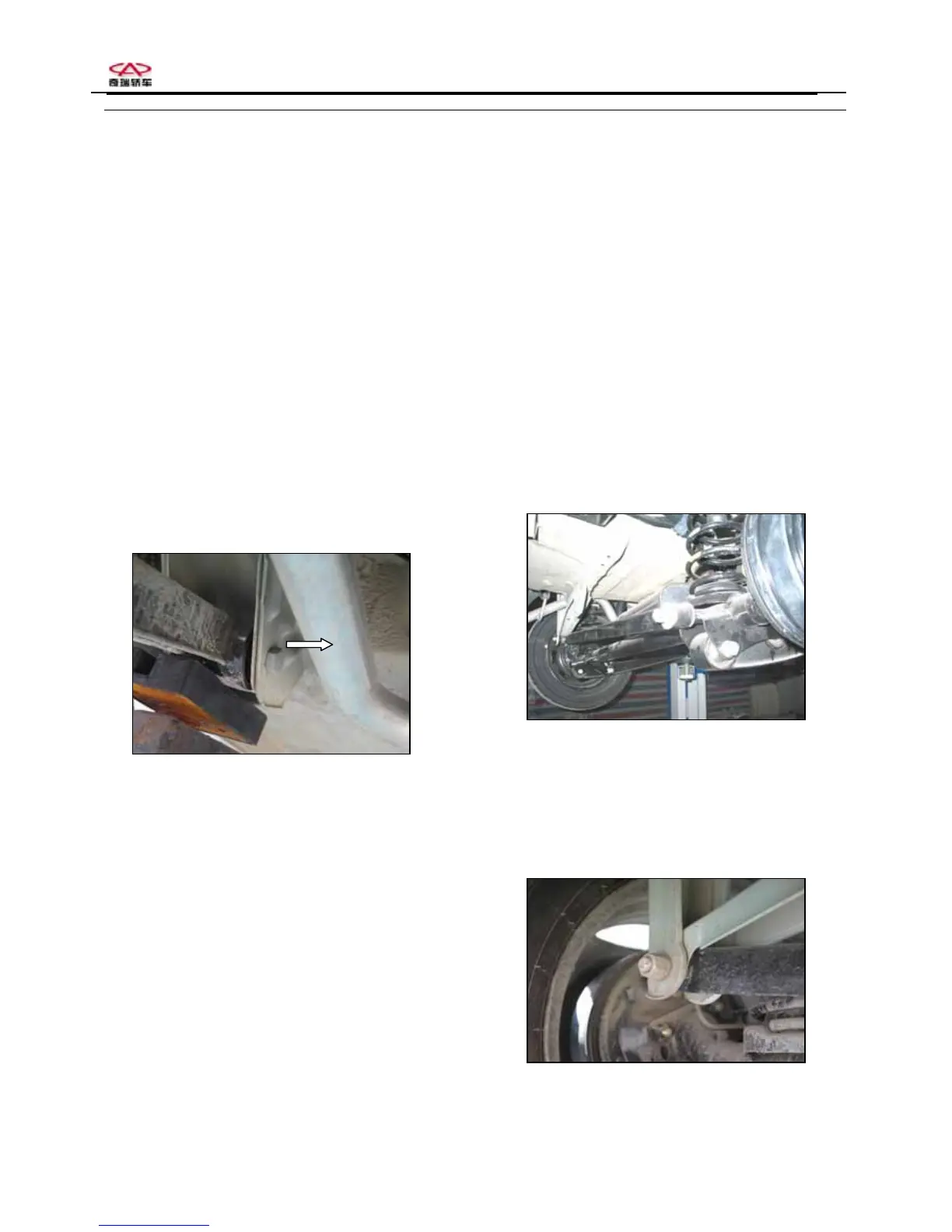

3 、 Remove the bolts fastening the vertical
swinging arm and the car body.
4、Remove the rear swinging arm.
Steps of installation:
1. Do the installation by referring to the steps
of dismounting.
2. Points of attention:
①In the screw tightening process, the
fastening bolts controlled by torque + corner
tightening submission limits should be
replaced after each action of loosening.
②The screws should be tightened to the specified
torques after the installation.
Inspections
Check to see if the swinging arm is damaged
or deformed; check if there are any cracks or
serious wears on the swinging arm sleeve.
The sequence for the installation procedures
is the opposite to those for removal. Tighten the
related bolts with the specified torques. Attention:
when the front sleeve is installed, the cut slots on
the sleeve should face forward and rearward
IV、Removal and installation of the
horizontal
stabilizing rod and rear bridge
Removal
1、Lift up the car and remove the rear wheels and
the brake drums. Remove the E-shaped ring and
brake soft tube from the rear bridge supporting
frame. Remove the oil inlet pipe of the brake
branch pump. Remove the rear brake base plate
and the manual brake pulling wire. Use a jack lift
to lift the center of the rear bridge.
2、Removal and installation of the rear bridge
horizontal stabilizing rod
1）Remove the joining bolt for the horizontal
stabilizing rod and the car body.
