CHERY SQR7080 EZ Drive SERVICE MANUAL
MECHANICAL TRANSMISSION
– GEAR POSITION SELECTION SENSOR
Tightening torque (unit: DAN.M)
Power on position sensor bolt 0.4
Electromagnetic valve 0.4
Lifting ring fixing nut 2.1
High-pressure pipeline coupler 1.4
Energy storage 4

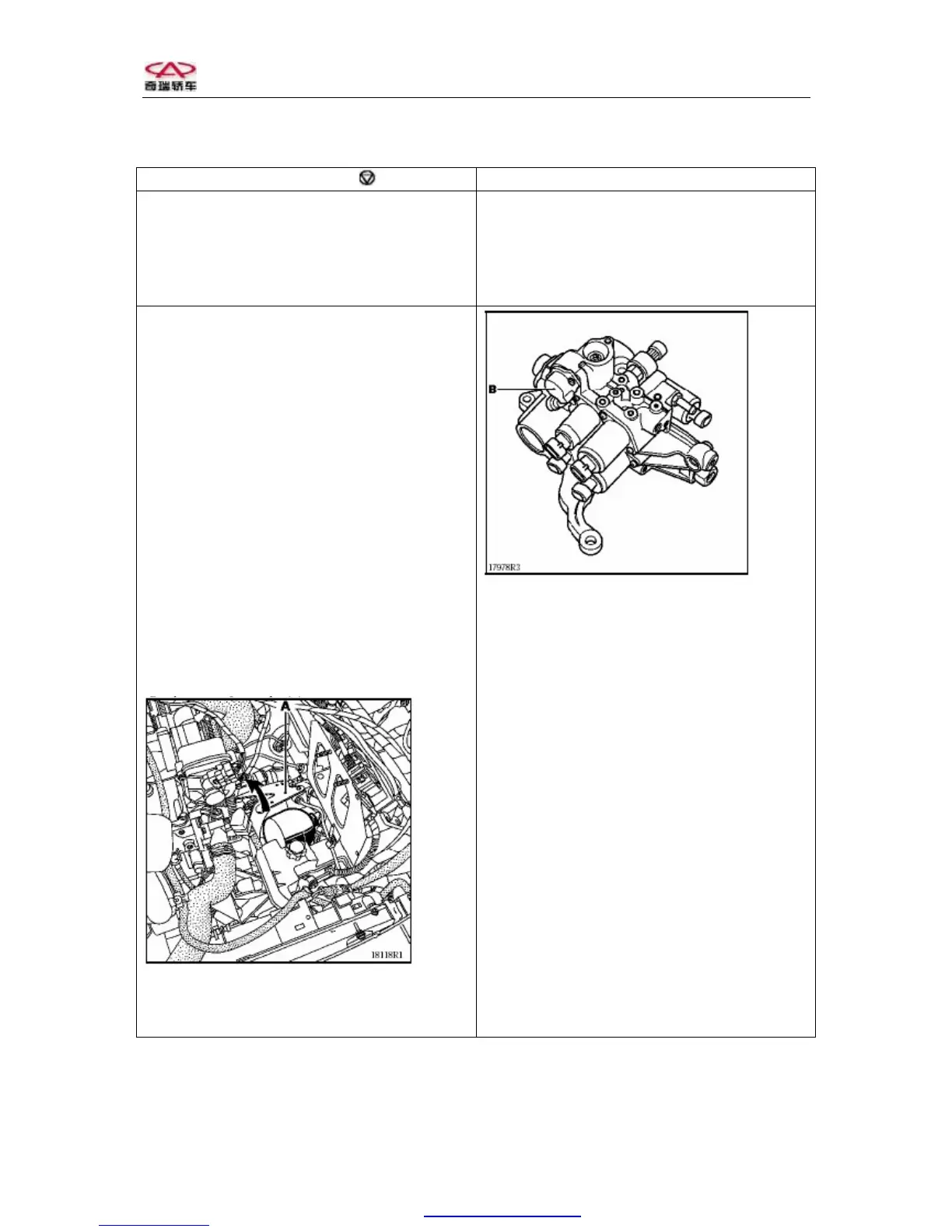

Disconnect the gear position selection connector (B)
Remove the gear position selection sensor (B)
Remarks:
Before maintaining the entire automated
mechanical transmission, use a special repair tool
to remove the energy storage (refer to the section
of "ENERGY STORAGE").
Before removing the gear position selection sensor,
it is necessary to change to the 1st gear.
Removal:
Disconnect the battery.
Remove:
– Air casing
– Air casing support
Disconnect the hydraulic unit wire harness
connector (A).
Remove the hydraulic unit wire harness connector
support (A).
Remounting:
Check the capability of the selective sensor to rotate
freely.
Carry out the following remounting procedure that
is opposite to the removal procedure.
Perform the corresponding test by using a special
tool. (Refer to the page 21-36 of section “special
requirements on change of system parts and
components of KIT electrically controlled hydraulic
system”)
Oil filling into oil tank
The mark shown on the oil tank is the lowest
standard.
Carry out the energy storage removal procedure.
Make sure that the oil level is 32 to 38 mm higher
than the lowest mark line.
Important tip:
The oil level will be at the position indicated by the
mark line (MIN) when the energy storage has been
fully inflated (15 seconds after ignition).
