Chery QQ - Differential Assembly

Chery QQ Service Manual Transmission System
1.Remove the slotted spring pin and disassemble every part.
2.Clean every part thoroughly and determine if some parts need to be replaced.
3.Install all the parts according to the figure and the installing order.
Notice:
 Division reverse shift fork spring and shift spring.
 Accurately install the reverse shift fork ball。
 Install the shift fork Slotted spring pin according to the reverse order.
（7）Differential Assembly
Disassembling:
1- Differential ring gear
2-Lock nut
3- Nut
4- Pinion gear gasket
5- Speedometer gear
6- Bearing
7- Side gear
8- Pinion gear
9- Differential bolt
10- Differential case
11-Pinion gear shaft pin
12-Pinion gear shaft
13-Side gear gasket
14-nearside bearing

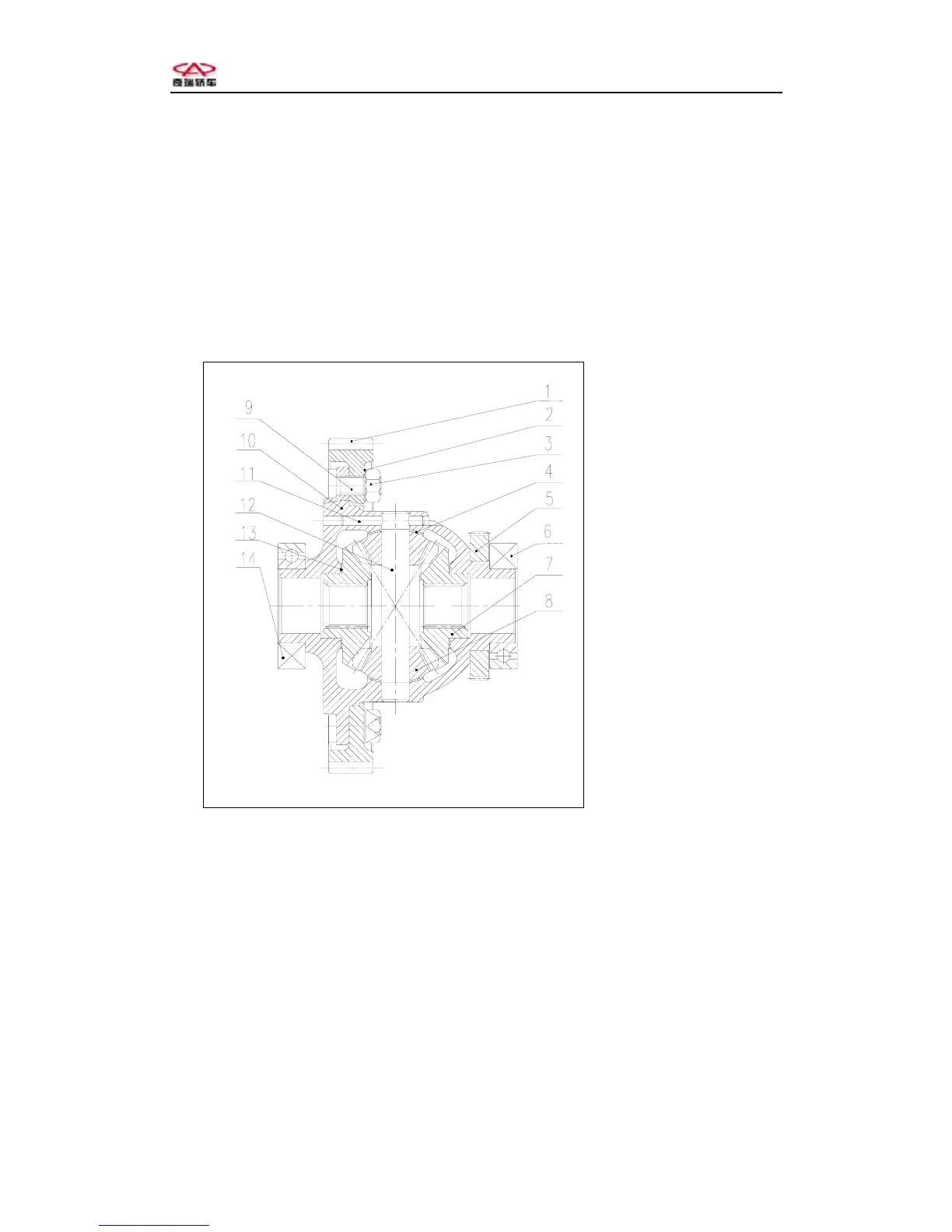

Fig.3-49 Differential assembly
1. Remove the right-side bearing.
2. Pull out the speedometer gear.
