Inspection
1、The steering shaft and universal coupling: check to see if the steering shaft is bent, or if the
spine is damaged; check to see if there are any cracks on the universal coupling, or if the free
play is too large. If so, replace the universal coupling assembly.
2、Steering column: check all the covers of the steering column stand, with the spaces from
the slot bottom within 1.00mm. If not, make proper replacements. Check to see if the steering
column is bent, cracked or deformed.
Installation
The order of installation steps is just the opposite to that for removal.
Attention: Apply alkali-based lubricating grease on the interior slot of the rubber sleeve of
the steering column, and tighten the associated bolts and screw nuts with the specified torque.
Manual Steering Gear

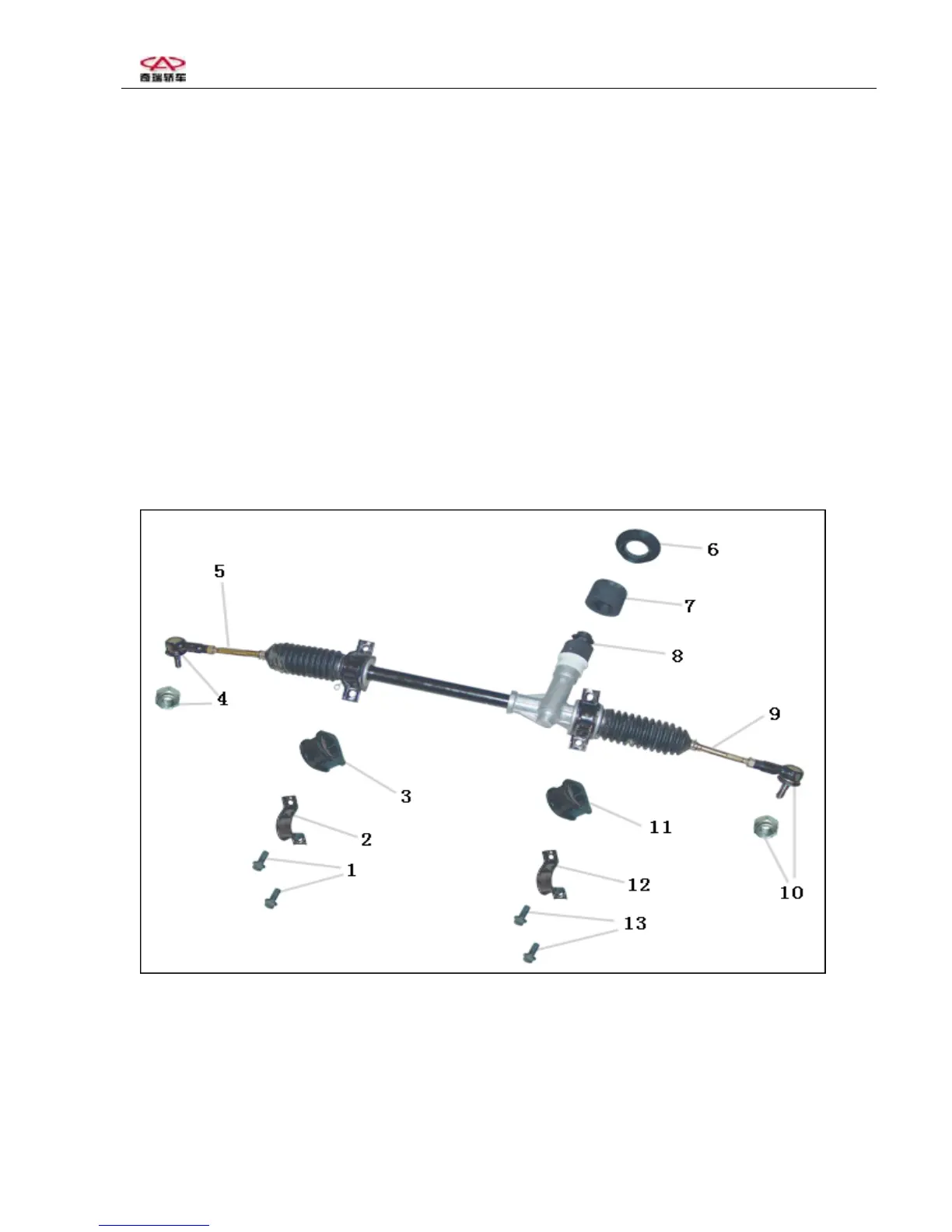

Manual steering gear components
1. Bolts; 2. Right supporting frame; 3. Right supporting frame sleeve;4. Right steering
horizontal lever joints assembly; 5. Right horizontal lever;6. Steering gear washer; 7.
Gear bearing stopper; 8. O-shaped ring; 9. Left horizontal lever; 10. Left steering
horizontal lever joints assembly; 11. Left supporting frame sleeve; 12. Left supporting
frame; 13. Bolt
