CHERY SQR7080 EZ Drive SERVICE MANUAL
CONTROL OF MACHINE PARTS – MAIN CYLINDER
Tightening torque (unit: DAN.M)
M10×100 1.3
Main cylinder bolt 1.5
Servo brake bolt 2
Removal:
Disconnect the battery.
Remove:
– Battery mounting support
– Battery
– Plastic computer protection cover
Disconnect and remove the computer
Use the injector to evacuate the brake oil tank.
Remove the oil tank and be careful to prevent the
brake fluid from flowing out. Therefore, it is
necessary that a rag is available in advance.
Remove:
– Two brake oil pipes and make
corresponding marks
– Main cylinder fasteners
Loosen the four fixing fasteners for servo brake in
the driver compartment.
Rotate the servo brake downwards so as to take out
the main cylinder.
Reassembly:

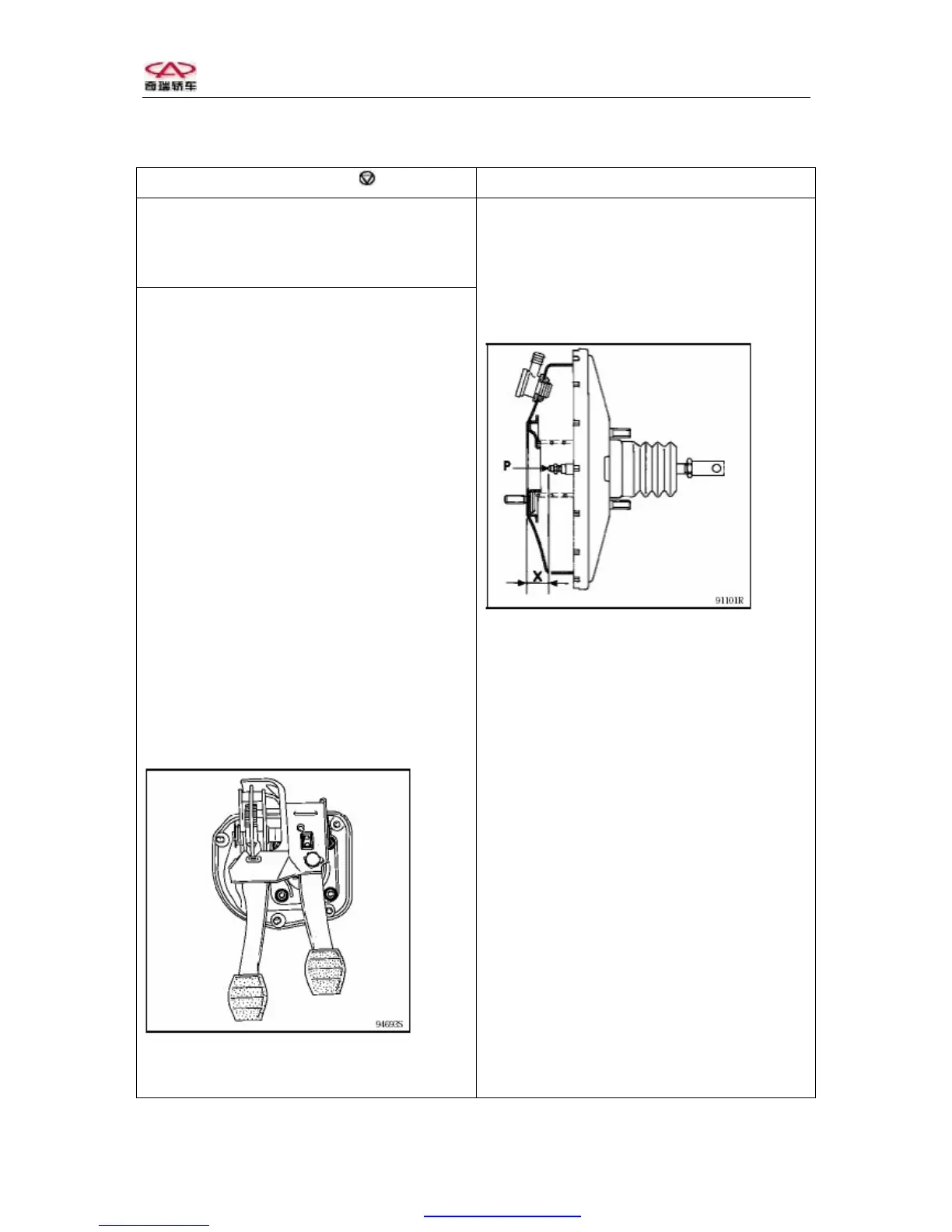

Check on the length of the pushrod.
Size: X = 22.3MM
It can be adjusted by using the measuring rod (P)
according to its particular model.
